60 kW SILENT GENERATOR SETS
- Power Ratings:60 kW 30KVA Standby / 29 kW 29KVA Prime
- Engine:Cummins 4B3.9-G2, Heavy-duty industrial-grade diesel engine, 1800 RPM, Turbocharged
- EPA Compliant:EPA CARB Tier 4 Final
- Alternator:Leroy Somer TAL-042, brushless, Class H insulation
- Controller:Deep Sea DSE7320 Digital auto-start/stop controller
- Condition:Brand New, 2 Years International Warranty
- Quality:100% engineered and assembled in China
OVERVIEW
The JJP-60GF fills the gap between a domestic standby set and a light commercial one. At 60 kW prime it will carry a small cold room, a lift and the lighting circuit of a low-rise building at the same time — the three loads that most often trip a 40 kW unit on motor start. Most buyers at this rating are moving up from a 30–40 kW set that ran out of headroom.
POWER RATINGS
| Rating | kW | kVA (0.8 PF) | Duty |
|---|---|---|---|
| Standby (ESP) | 66 kW | 83 kVA | Loss of mains only, 200 h/yr |
| Prime (PRP) | 60 kW | 75 kVA | Unlimited hours, 10% overload 1 h in 12 |
All ratings at 0.8 power factor, 50 Hz or 60 Hz, 3-phase 4-wire. 60 Hz ratings are approximately 20 percent higher in kW for the same frame.
ENGINE OPTIONS ON THIS FRAME
| Brand | Engine model | Standby output | Cylinders | Displacement |
|---|---|---|---|---|
| Weichai | WP4.1D66E200 | 66 kW | 4-cyl | 4.1 L |
| SDEC | 4ZTAA4.1-G21 | 50 kW | 4-cyl | 4.1 L |
| Yuchai | YC4D95-D21 | 72 kW | 4-cyl | 4.2 L |
The engine is matched so that its standby output exceeds the alternator rating by 10–15 percent. We will quote any of the options above at the same alternator rating; the price difference between them is the engine cost, nothing else.
ALTERNATOR, CONTROL AND ENCLOSURE

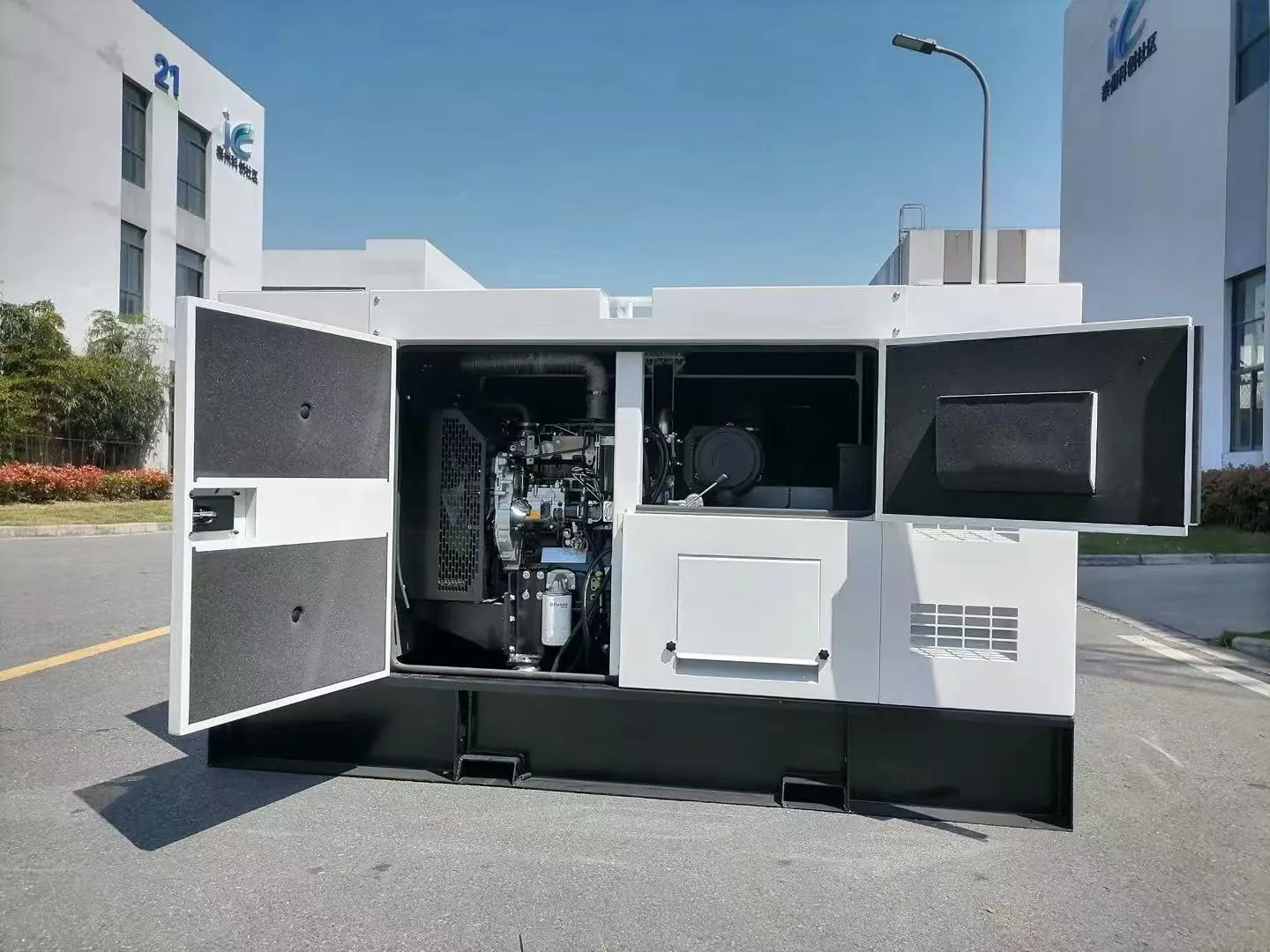

Alternator: Faraday FD2C-4 / Stamford UCI274, brushless, single-bearing, Class H insulation, IP23, 2/3 pitch winding for low waveform distortion. Controller: Deep Sea DSE7320 MKII as standard, with DSE8610 for parallel operation. Enclosure: powder-coated steel canopy, 65–75 dB(A) at 7 m depending on grade, with lockable access doors on both sides, integral double-walled fuel tank and a residential-grade exhaust silencer inside the canopy.
DIMENSIONS AND FUEL CONSUMPTION
| Open skid (L x W x H) | 2100 x 950 x 1350 mm |
| Open skid weight | 1000 kg |
| Silent canopy (approx.) | add 300 mm to each dimension, add 180–250 kg |
| Fuel consumption | ≤ 205 g/kWh at full load |
WHAT THIS RATING SUITS
Small cold storage and food processing; low-rise office and shop backup; water pumping station; small hotel with lift; workshop with welders and compressors.
BUYING THIS RATING FROM THE FACTORY
Jinjia Power is a diesel generator supplier and genset manufacturer in Dongguan, China. This 60 kW genset is assembled and load-bank tested at 100 percent rated output in our own works before it ships, and it carries a 2-year international warranty. Send the standby kVA you need, the voltage and frequency (50 or 60 Hz) and the destination port, and you get a firm quote inside one working day — engine model, alternator frame, controller, canopy grade and CIF price on one sheet.
Because we assemble in-house rather than resell, a non-standard rating, a dual-frequency output, a super-silent canopy or a containerised package is a build option, not a special order. Ask us for the price of this rating against the next one up before you decide — the step from 60 kW to the next frame is usually smaller than buyers expect.
