DIESEL ENGINE PRODUCTS
Beyond generators — Jinjia Power also supplies diesel engine-driven equipment for lighting, water pumping, and fire protection. All powered by reliable engines from Cummins, Perkins, Yuchai, Weichai, Volvo and more.
Mobile Light Towers
Self-contained diesel-powered mobile lighting solutions for construction, mining, emergency response and outdoor events.
Diesel-powered mobile light towers for construction & emergency
Towable Diesel Lighting Towers
Our mobile light towers integrate a silent diesel generator with a telescopic mast and high-intensity LED lamps. Designed for rapid deployment in remote or off-grid locations, these units provide reliable illumination for work sites of any size.
Available Models: 4 kW to 20 kW generator output, 7m to 12m mast height.
| Parameter | Standard Model | Premium Model |
|---|---|---|
| Generator Power | 6 kW (7.5 kVA) | 12 kW (15 kVA) |
| Engine Brand | Yangdong / Kubota | Perkins / Cummins |
| Mast Height | 7 m (mechanical) | 9 m (hydraulic) |
| Lamp Configuration | 4 x 400W LED | 4 x 1000W LED |
| Coverage Area | ~3,000 m² | ~5,000 m² |
| Fuel Tank | 80 L (~30h runtime) | 120 L (~48h runtime) |
| Mobility | Single-axle trailer | Dual-axle trailer |
Applications
- Construction sites & road works (night operations)
- Mining & quarry site lighting
- Emergency & disaster relief operations
- Outdoor events, concerts & sports venues
- Airport & runway maintenance
Diesel Water Pump Units
High-flow, self-priming diesel engine-driven water pumps for flood control, irrigation, drainage and emergency water supply.

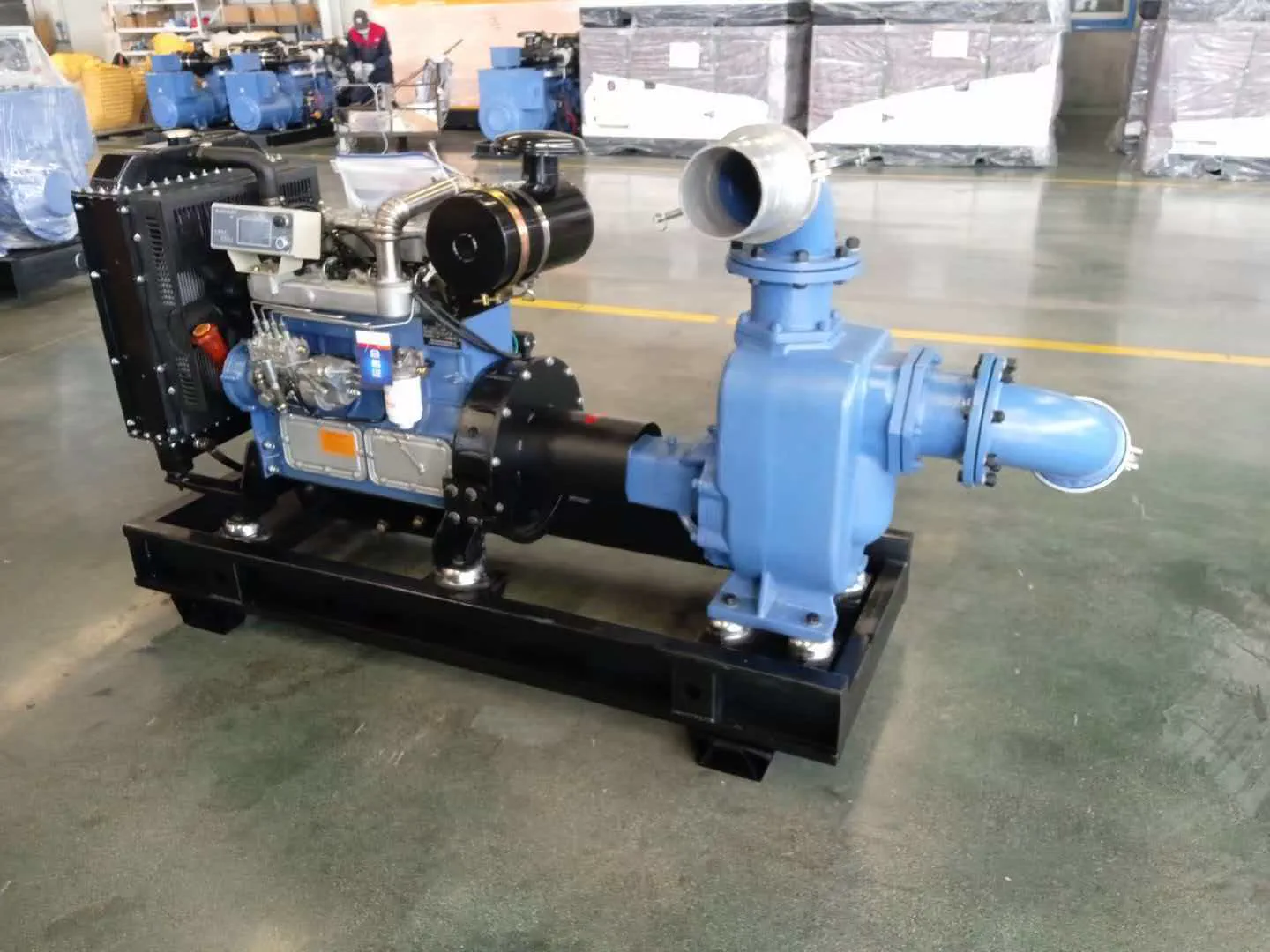

Self-priming diesel water pump units & compact pump sets
Mobile & Fixed Diesel Water Pump Sets
Jinjia Power supplies diesel-driven water pump units in both mobile trailer-mounted and fixed skid-mounted configurations. Our self-priming centrifugal pumps handle clean water, sewage and muddy water with solids up to 76mm. Available with engines from Cummins, Yuchai, Weichai and other leading brands.
Flow Range: 200 m³/h to 1,500 m³/h | Head: 10m to 100m
| Parameter | 6" Unit | 8" Unit | 10" Unit |
|---|---|---|---|
| Flow Rate | 300 m³/h | 600 m³/h | 1,000 m³/h |
| Total Head | 20 m | 16 m | 16 m |
| Suction Lift | 8.5 m | 8 m | 7.5 m |
| Engine Power | 23 kW | 72 kW | 120 kW |
| Engine Brand | Yangdong / Yuchai | Weichai / Cummins | Weichai / Cummins |
| Fuel Tank | 60 L | 150 L | 250 L |
| Max Solids Dia. | 50 mm | 76 mm | 76 mm |
| Weight | ~1,200 kg | ~1,800 kg | ~2,500 kg |
Applications
- Flood control & emergency drainage
- Agricultural irrigation & farmland water supply
- Municipal sewage & wastewater treatment
- Mine dewatering & construction site drainage
- Remote area water supply (off-grid)
Diesel Fire Pump Sets
NFPA 20 compliant diesel engine-driven fire pump systems for critical fire protection in industrial, commercial and residential applications.

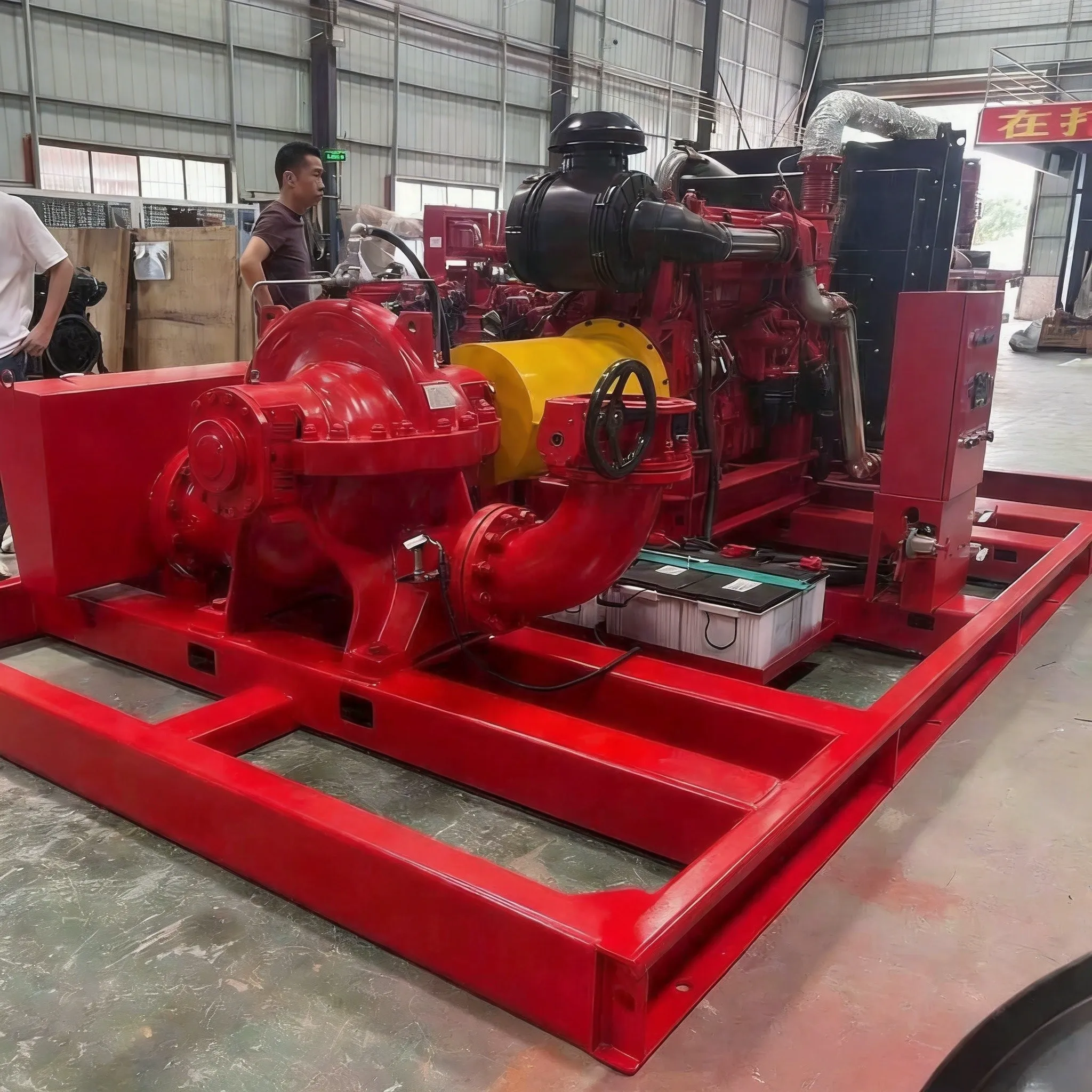

NFPA 20 diesel fire pump sets & factory production
Diesel-Driven Fire Pump Systems
Our diesel fire pump sets are designed for installations where reliable grid power cannot be guaranteed. Built to NFPA 20 standards with dual battery starting, 8-hour fuel tanks, and mechanical governors for fail-safe operation. Available with horizontal split-case or end-suction pumps.
Flow Range: 500 to 6,000 L/min | Pressure: 0.2 to 2.2 MPa
| Parameter | Standard Series | High Pressure Series |
|---|---|---|
| Rated Flow | 500 - 1,500 L/min | 1,000 - 3,000 L/min |
| Rated Pressure | 0.4 - 1.0 MPa | 1.0 - 2.2 MPa |
| Engine Power | 50 - 150 kW | 150 - 350 kW |
| Engine Brand | Cummins / Yuchai | Cummins / Volvo |
| Speed | 1,500 rpm | 1,500 / 1,800 rpm |
| Starting System | Dual battery (2x12V) | Dual battery (2x24V) |
| Standards | NFPA 20 / GB 6245 | NFPA 20 / GB 6245 |
| Controller | PLC auto start/stop | PLC auto start/stop |
Applications
- Petrochemical plants & refineries
- Warehouses & large commercial buildings
- Hospitals, data centers & critical infrastructure
- High-rise buildings fire protection
- Offshore platforms & marine facilities

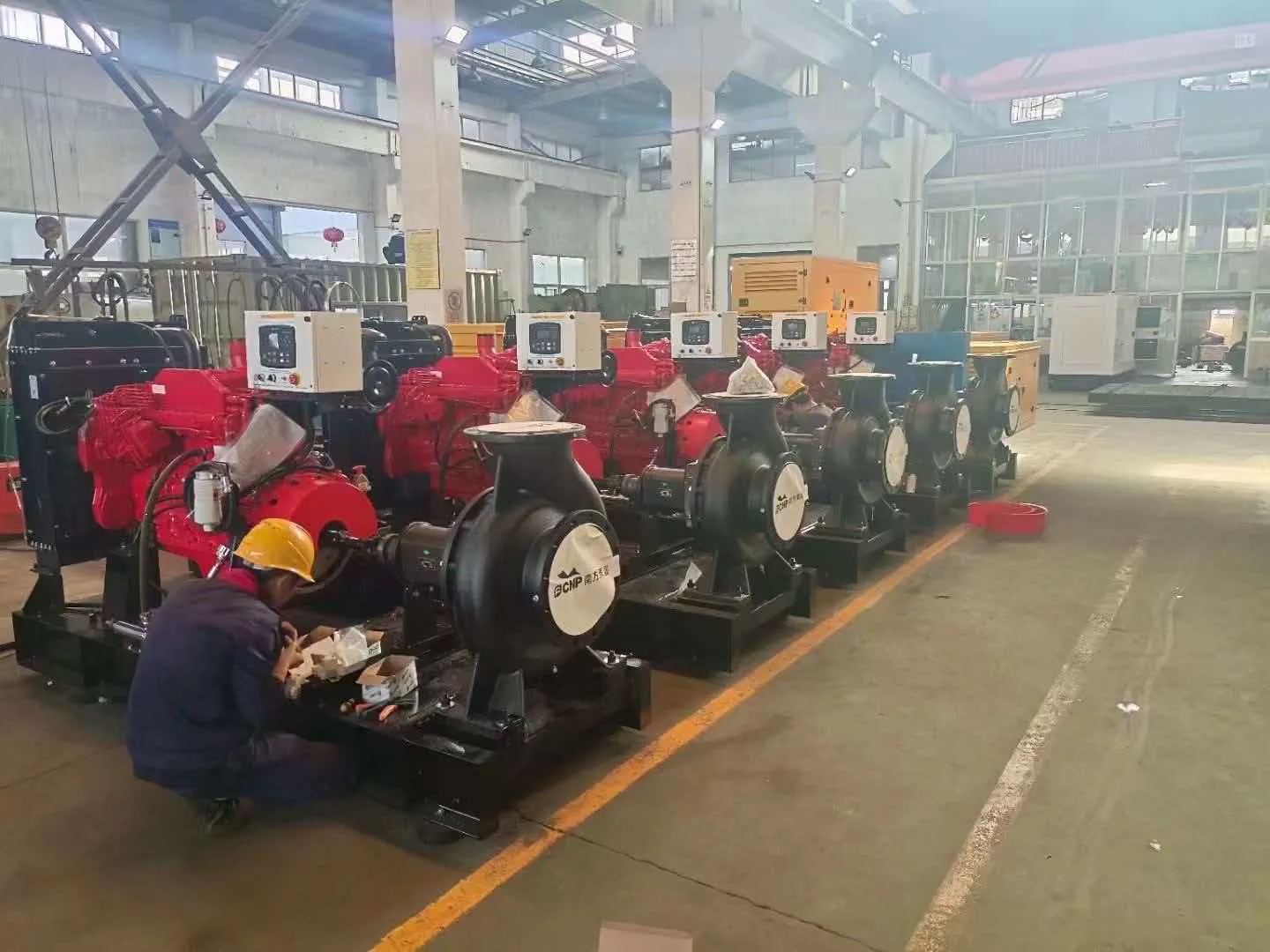

Our Workshop & Manufacturing
From precision assembly to quality inspection — every diesel pump and fire pump set is built, tested and inspected in our facility before delivery.
Quality Manufacturing, Factory Direct
All our diesel engine products are manufactured in our ISO-compliant facility. We maintain strict quality control throughout the production process — from engine assembly to pump coupling, wiring, and final load testing.
With over a decade of experience, our team delivers reliable diesel-powered solutions for customers worldwide. All products are factory-direct — no middleman markups.
Why Choose Jinjia Power?
- Engine options: Cummins, Perkins, Yuchai, Weichai, Volvo & more
- Complete customization: flow rate, head, pressure, control system
- Factory-direct pricing with full warranty
- Export experience to Southeast Asia, Africa, Middle East, South America
- OEM/ODM service: branded to your specifications
Need a Custom Solution?
Contact us for tailored diesel engine products — we can configure the right engine, pump or lighting tower for your requirements.
