CONTAINERIZED GENERATOR SETS
200 kW – 2000 kW | 20ft & 40ft ISO Container | Turnkey Power Solutions for Mission-Critical Applications
What Are Containerized Generators?
Integrated power stations built inside standard ISO shipping containers
Containerized generator sets are complete power generation systems housed inside standard ISO shipping containers (20ft or 40ft). Unlike open-frame or canopy generators, these are fully self-contained power stations — the engine, alternator, cooling system, fuel tank, control panel, switchgear, and exhaust system are all integrated into a single container.
Designed for heavy-duty continuous operation, container gensets are the preferred choice for data centers, mining operations, oil & gas fields, large industrial plants, and critical infrastructure projects where reliability, weather protection, and rapid deployment are essential.
Each unit is engineered for plug-and-play installation — delivered to site, connected to fuel and load, and operational within hours. Containers can be stacked, shipped worldwide via standard logistics, and expanded in parallel for multi-megawatt power plants.
KEY FEATURES
Engineered for reliability in the toughest environments
ISO Container Design
Standard 20ft or 40ft high-cube ISO container with 8 corner castings for forklift, crane, and twist-lock handling. Fully compatible with global shipping and logistics infrastructure.
Weatherproof & Soundproof
Heavy-duty steel enclosure with weather seals, acoustic insulation, and anti-corrosion paint. Designed for outdoor deployment in extreme climates — from -40°C to +50°C ambient.
Turnkey Solution
Complete power station in one container: diesel engine, alternator, radiator, fuel tank, control panel, circuit breakers, fire suppression, exhaust system, and optional SCADA monitoring.
Rapid Deployment
Factory pre-tested, delivered ready to run. Connect fuel supply, load cables, and start. No building or enclosure construction required. Can be operational within hours of arrival.
Customizable Configuration
Options include: double-wall fuel tank (8-24 hr runtime), automatic paralleling, remote monitoring, LV/MV switchgear, synchronizing, auto transfer switch, and sound-attenuated packages.
Global Standards
All models meet ISO 8528, IEC 60034, and applicable EPA/CARB/CE standards. Full documentation including test reports, wiring diagrams, O&M manuals in English and Chinese.

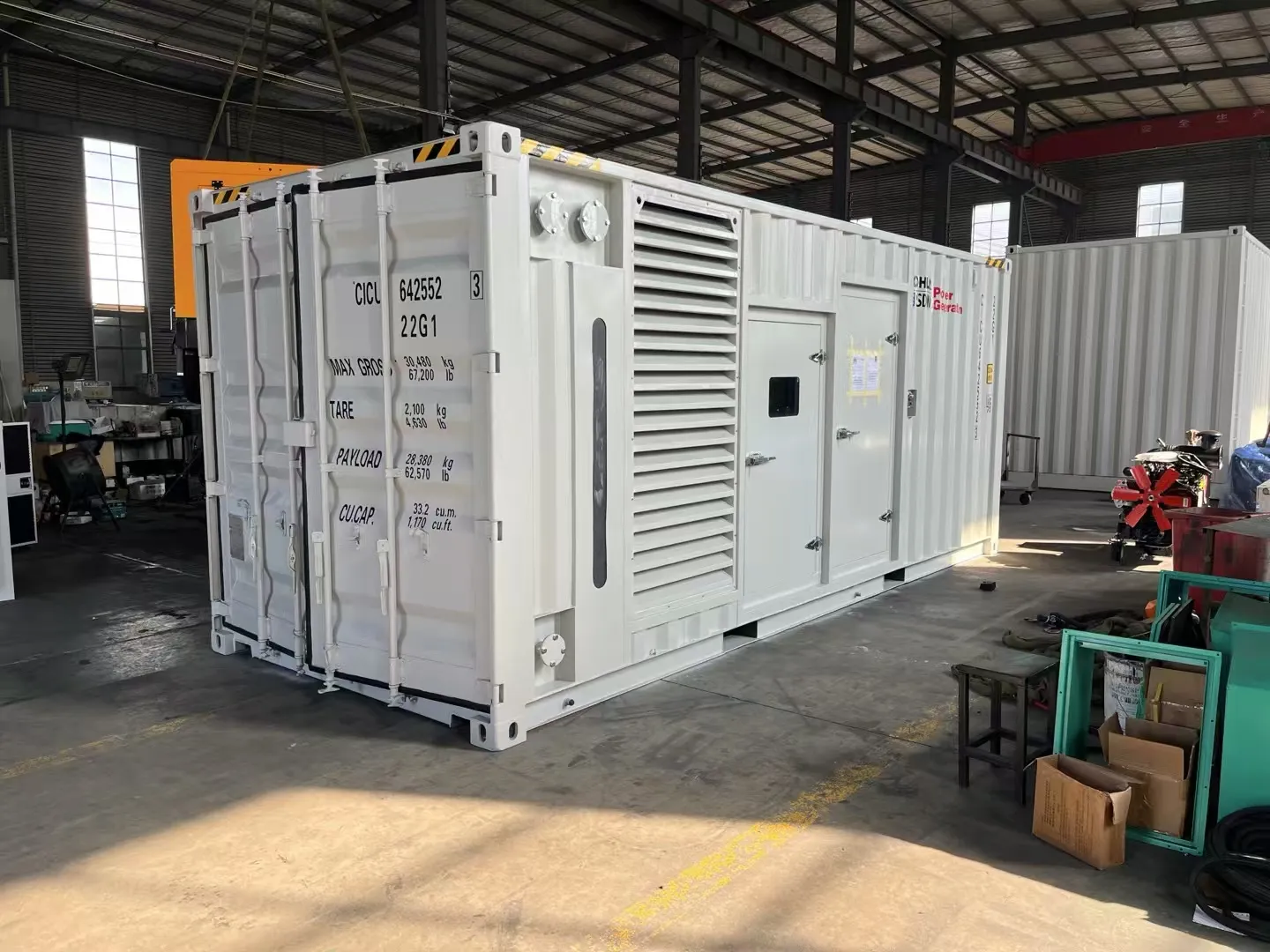

Inside the Container
How a containerized generator set is built — core components and layout
Every containerized genset is built around three core subsystems integrated within the ISO container body:
- Engine & Alternator — Premium diesel engines (Cummins, Perkins, Volvo, SDEC, MTU) directly coupled to brushless alternators (Stamford, Leroy-Somer, Mecc Alte).
- Cooling System — Heavy-duty remote or belt-driven radiator sized for 40-50°C ambient, with optional charge-air cooling for turbocharged engines.
- Control & Distribution — Digital control panel (Deep Sea, ComAp, or Woodward) with auto-start, fault monitoring, and remote communication. MV/LV switchgear, ATS, and paralleling as required.
The container design creates a natural sound-attenuating enclosure. Internal acoustic baffles and absorption materials reduce noise levels to 75-85 dB(A) @ 7m depending on power rating and package.
Standard layout: engine-alternator set mounted on heavy-duty steel skid with vibration isolators, 8-24 hour sub-base fuel tank, front-mounted radiator, side-mounted control panel with armored cable entry.
TECHNICAL SPECIFICATIONS
Standard configurations for Jinjia Power containerized generator series
| Power Range | Container Size | Engine Options | Fuel Capacity | Sound Level | Voltage |
|---|---|---|---|---|---|
| 200 - 500 kW | 20ft ISO | Cummins, Perkins, Volvo, SDEC | 800-1500 L | 75-80 dB @ 7m | 480V / 600V 3-Phase |
| 500 - 1000 kW | 20ft / 40ft ISO | Cummins, SDEC, MTU, Perkins | 1500-3000 L | 78-83 dB @ 7m | 480V / 600V / 11kV |
| 1000 - 1500 kW | 40ft ISO | Cummins K-series, SDEC, MTU | 3000-5000 L | 80-85 dB @ 7m | 600V / 11kV / 13.8kV |
| 1500 - 2000 kW | 40ft ISO HC | MTU, Cummins QSK, SDEC | 5000-8000 L | 82-85 dB @ 7m | 11kV / 13.8kV |
* Specifications may vary by brand and configuration. Contact us for a custom engineered solution.
APPLICATIONS
Where containerized generators deliver maximum value
Data Centers
Reliable N+1 backup power for server rooms, colocation facilities, and cloud data centers with automatic failover and remote monitoring.
Mining & Quarry
Primary or standby power for remote mine sites, crushers, conveyors, dewatering pumps, and camp facilities in harsh environments.

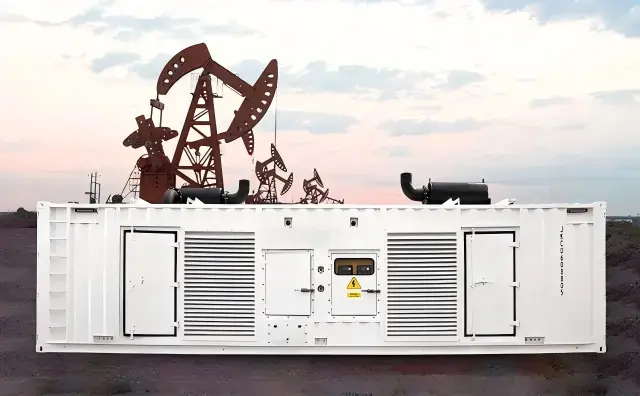

Oil & Gas
Power for drilling rigs, wellhead pumps, pipeline compressors, and processing facilities. Zone-rated options available for hazardous areas.
Industrial Plants
Standby and peak-shaving power for factories, cement plants, steel mills, and processing facilities requiring reliable grid-independent operation.

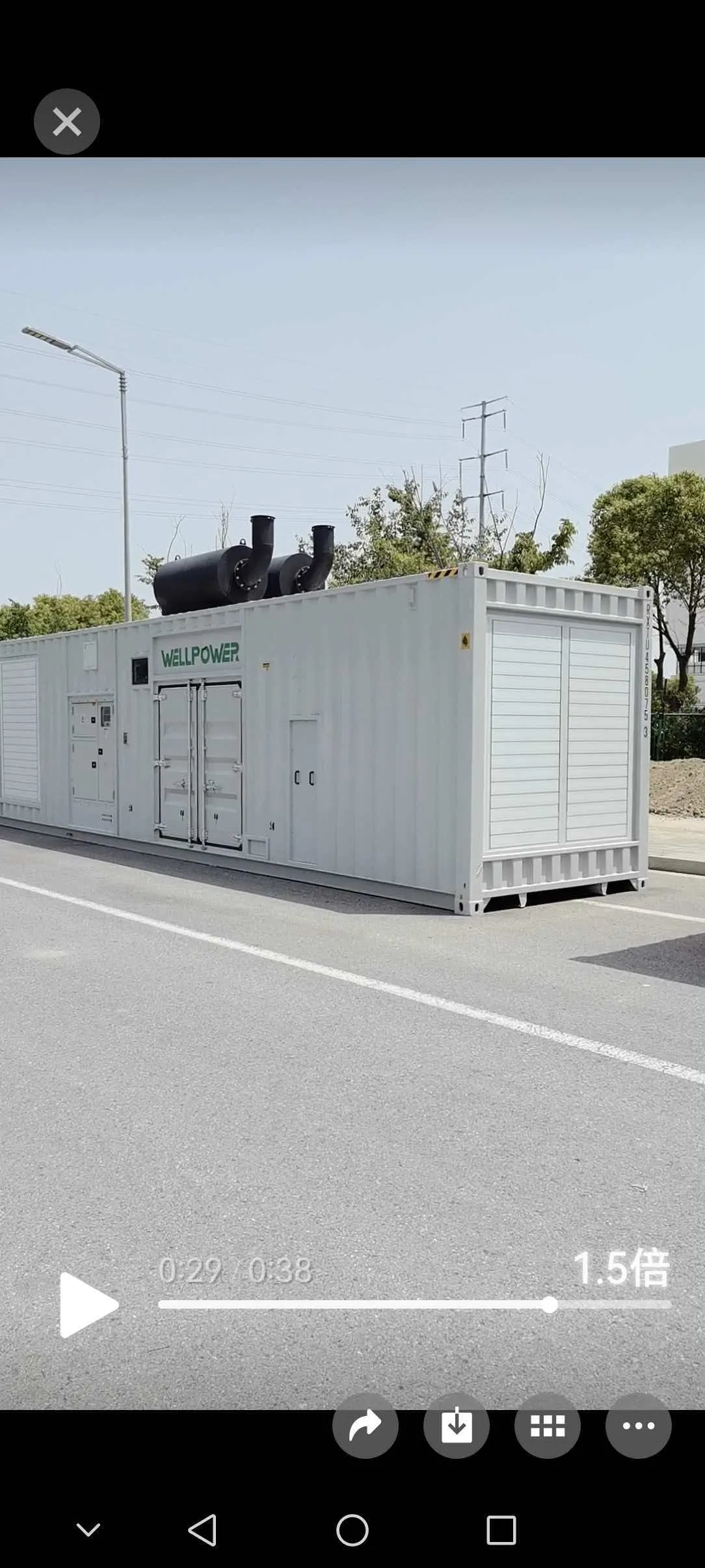

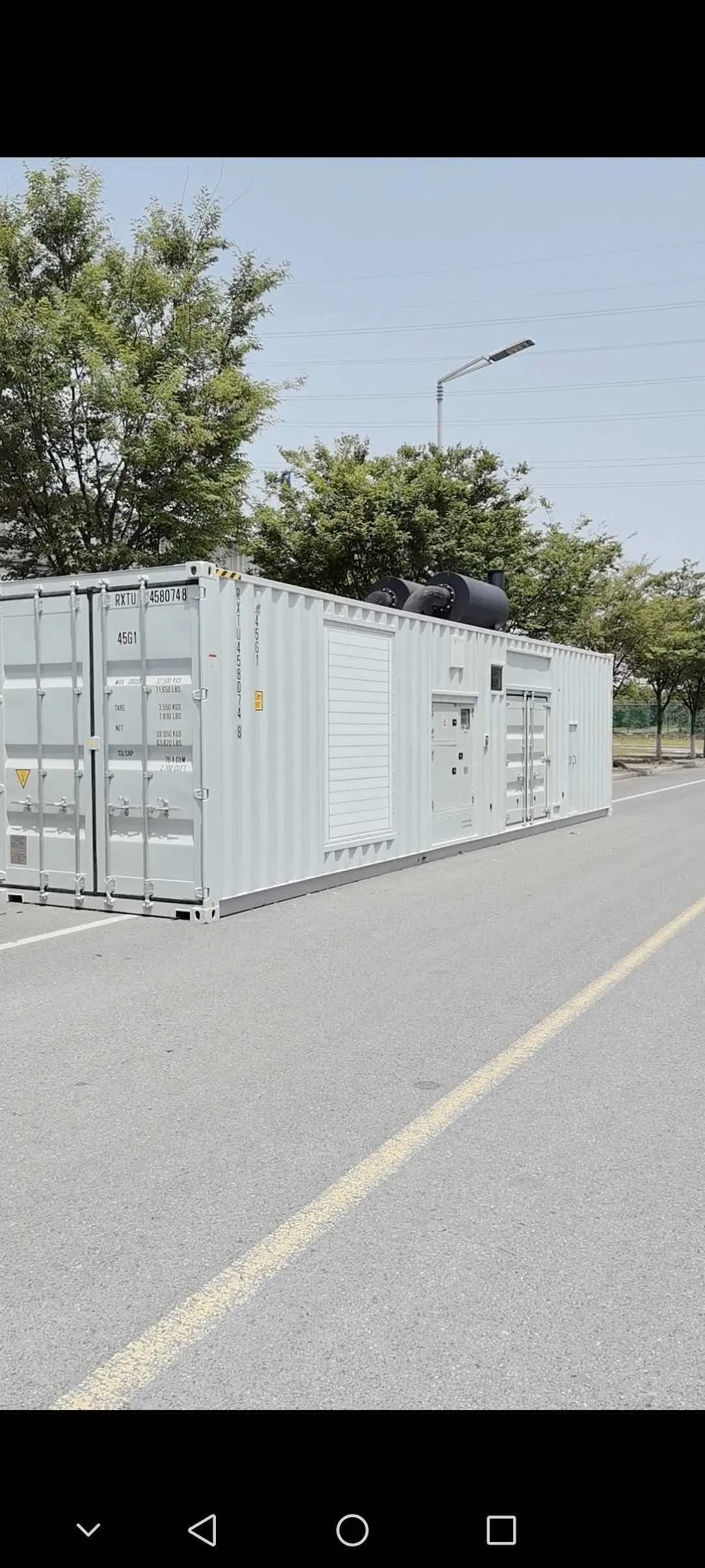

PRODUCT GALLERY
Real photos of Jinjia Power containerized generator sets
PRODUCT VIDEOS
Watch our large generator sets in action — real products in real conditions
1200kW Cummins Site Installation
Large containerized Cummins generator set on-site installation
SDEC 2400kW Generator
SDEC 2400kW high-power diesel generator
Factory Product Lineup
Complete factory product lineup display
Need a Custom Containerized Generator?
Tell us your power requirements and site conditions. We'll engineer the perfect containerized solution for your project.
