STAMFORD MX321 Analogue AVR | Voltage Regulator | Jinjia Power

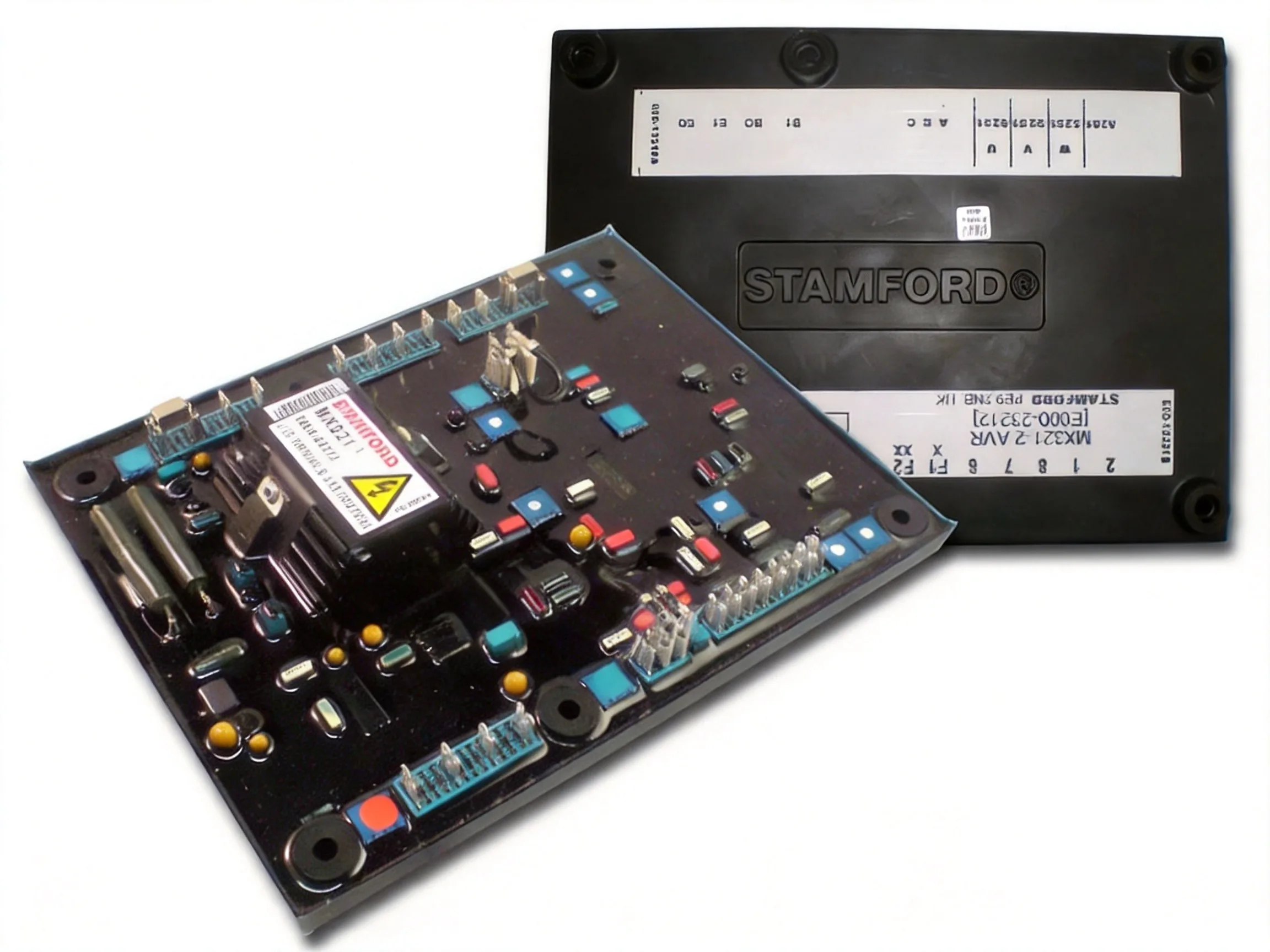

STAMFORD MX321 Analogue AVR - Analogue Automatic Voltage Regulator with PMG for STAMFORD Alternators | OEM Replacement

MX321

Status: IN STOCK, Same day shipping Worldwide available | Brand New, 1 Year International Warranty

* Contact us for pricing and full specifications

πŸ“ž Get a Quote:86-13553838770
← Back to products

Specifications

SKUMX321
BrandSTAMFORD
Model NumberMX321
Regulator TypeAnalogue Automatic Voltage Regulator with PMG
Excitation SystemPMG fed, excitation power independent of the generator output
Sensing InputThree-phase RMS sensing, 190-264 Vac class
Power InputPMG, 50 / 60 Hz
Output VoltageMaximum 180 Vdc
Continuous Field Current4 A continuous class
Forcing Current9 A for 10 s
Field Resistance (Min)15 ohm minimum
Regulation Accuracy+/-0.5 per cent
Response TimeAVR response 10 ms
Frequency Range50 / 60 Hz
Under-Frequency ProtectionUnder-frequency knee at 95 per cent of nominal Hz
Voltage Adjustment+/-10 per cent with a 5 kohm, 1 W potentiometer
Paralleling / DroopReactive droop via CT
Build-Up VoltageBuilds up from residual voltage
Thermal Drift0.02 per cent per degC
Operating Temperature-40 to +70 degC
Storage Temperature-40 to +85 degC
Protection FeaturesBuilt-in over-voltage protection, sustained over-excitation protection that de-excites after a minimum of 5 s, adjustable short-circuit current level
Compatible AlternatorsStamford HC and LVSI alternators with PMG
MountingPanel or terminal-box mount
Lifecycle StatusIn production
AvailabilityIN STOCK, Same day shipping Worldwide available
ConditionBrand New, 1 Year International Warranty
Warranty1 Year International Warranty

Product Overview

STAMFORD MX321. This is a Analogue Automatic Voltage Regulator with PMG from the STAMFORD range, supplied as a direct replacement for the same model number in the field. The figures that matter are printed in the table above and repeated here so the page can be read on its own: field current rating 4 A continuous class, field resistance window 15 ohm, accuracy +/-0.5 per cent, working range -40 to +70 degC. Everything else on this page exists to explain how those four numbers decide whether the unit fits a particular alternator.

Excitation architecture. PMG fed, excitation power independent of the generator output. That single sentence decides most of the regulator's behaviour in a fault: whether the field survives a close-up short circuit, whether the machine builds up from residual voltage on its own, and how much the terminal voltage dips when a large motor starts on the same bus. Take a photograph of the terminal block before removing anything. Wiring drawings for older machines are frequently wrong, and the photograph is the only reliable record.

Sensing. Three-phase RMS sensing, 190-264 Vac class. The sensing circuit is the regulator's only view of the outside world, so its wiring matters as much as its specification. A voltage error introduced by a loose terminal or a long run of untwisted cable is indistinguishable, from the regulator's point of view, from a genuine voltage error on the alternator. The most common cause of intermittent excitation loss is a crimp terminal that was never properly made. Wiggle the harness with the machine running before replacing anything.

Power stage and field drive. Power input PMG, 50 / 60 Hz, output Maximum 180 Vdc. Field current rating 4 A continuous class, forcing capability 9 A for 10 s, field resistance window 15 ohm. These are not independent numbers: the output voltage ceiling and the field resistance together set the maximum current the board can actually deliver, and the continuous rating is only reachable at the low end of the resistance window. Vibration kills more regulators than heat does. If a board has failed twice in the same machine, look at the mounting before looking at the supplier.

Accuracy and response. +/-0.5 per cent steady-state accuracy, AVR response 10 ms, thermal drift 0.02 per cent per degC. In practice the accuracy figure is the least interesting of the three. What an operator notices is recovery after a load step, which is governed by response and by available forcing current, and what a maintenance engineer notices after two years is drift, which is governed by the reference circuit and the ambient temperature inside the terminal box. An alternator that has been rewound needs its field resistance re-measured, because a rewind commonly moves it by ten to twenty per cent in either direction.

Frequency behaviour. Rated for 50 / 60 Hz, with Under-frequency knee at 95 per cent of nominal Hz. The frequency-sensitive function exists to protect the prime mover, not the alternator: as engine speed falls the regulator reduces excitation so the alternator stops demanding torque the engine cannot supply. Without it, an overloaded engine is dragged down until it stalls, and the alternator is blamed for a fault that belongs to the fuel or governor system. The cheapest diagnostic tool in excitation work is a DC ammeter in the field circuit. It turns a vague symptom into a number within seconds.

Paralleling. Reactive droop via CT. On a single set this circuit does nothing. On two or more sets it is the only thing that stops the machines from exchanging reactive power in a slow oscillation, and it is the first place to look when a parallel installation shows a circulating current that nobody can explain. Field resistance is a temperature-dependent number. A reading taken on a cold morning and a reading taken after an hour at load are both correct and both different.

Protection built into the regulator. Built-in over-voltage protection, sustained over-excitation protection that de-excites after a minimum of 5 s, adjustable short-circuit current level. These functions protect the alternator and the regulator, not the installation. Downstream protection, loss of mains and reverse power all belong to the controller, and a site that relies on the AVR for them is a site that will eventually trip in a way nobody can explain. If two identical sets behave differently on the same load, swap the regulators before swapping anything else. The result tells you which side of the machine the fault is on.

What it fits. Stamford HC and LVSI alternators with PMG. Lifecycle status: In production. Both halves of that sentence matter at order time. A board that fits perfectly but has been discontinued is a different commercial decision from one that fits and is in current production, and the price difference rarely reflects the difference in risk. A set that runs at reduced speed will show low voltage on any regulator. Check engine speed against the nameplate before touching the excitation system.

Field notes on this model. The MX321 is the PMG version of the Stamford regulator family, and the PMG is the whole point: excitation power comes from a permanent magnet pilot exciter, so a dead short on the main output does not collapse the field. That gives a defined short-circuit current for downstream protection coordination, and it lets the set ride through a motor start that would otherwise pull terminal voltage down far enough to drop the contactors.

Reading the application backwards. Most regulator problems arrive described as engine trouble. A set that hunts on load, or whose voltage sags for two seconds after a contactor closes, is usually reporting a field current limit rather than a fuel problem. On a MX321 the first thing to check is whether the 4 A continuous class figure is being reached on a cold morning, because field resistance rises with temperature in the opposite direction to copper and a board that is marginal at 20 degC can be comfortable at 50 degC or the other way round depending on the winding.

Fusing. Fit the fuse the manual specifies and nothing larger. A bigger fuse does not protect the regulator better, it protects it later. On a MX321 the fuse is there to clear a field short before the thyristor is destroyed, and a 20 A fuse in place of an 8 A one turns a cheap board replacement into a rewind.

Under-frequency check. Run the set at reduced speed and confirm the volts-per-hertz knee actually operates. This test is skipped on most commissioning sheets and it is the one that saves an engine on a real overload, because the knee is what stops the alternator from loading a lugging engine into a stall.

Measure, do not assume. Nameplate field resistance figures are nominal at 20 degC and are frequently wrong after a rewind. Take the measurement with a four-wire meter if one is available, because a two-wire reading on a low resistance winding includes the lead resistance and can be off by twenty per cent.

Voltage high and unresponsive. If the machine runs to maximum excitation regardless of the trim, disconnect the field and see whether the voltage collapses. If it does, the regulator has failed shorted; if it does not, the field is being fed from somewhere else, usually a shorted thyristor or a mis-wired paralleling circuit. Do not run the machine at full excitation for more than a few seconds while diagnosing, because the winding will not survive it.

Delivery and packing. Regulators are static-sensitive assemblies and should arrive in a sealed bag with foam, not loose in a box with a heatsink. Inspect on arrival and photograph the packaging before opening if there is any sign of crush damage.

Matching the board to the duty, not to the label. Two STAMFORD alternators of the same kVA can need different regulators if one is specified for motor starting and the other for a resistive load. The MX321 is specified at +/-0.5 per cent regulation accuracy, which is the number that matters when the load is a mix of drives and lighting. For a purely resistive load even a looser board is invisible to the customer, and paying for accuracy that nobody measures is the most common way money is wasted on a rebuild.

Documentation that survives the job. Photograph the terminal block before disconnecting anything, and write the sensing tap and the field resistance on the inside of the terminal box lid. Ten years later that note is the only thing that will let the next engineer choose a replacement without a full survey.
