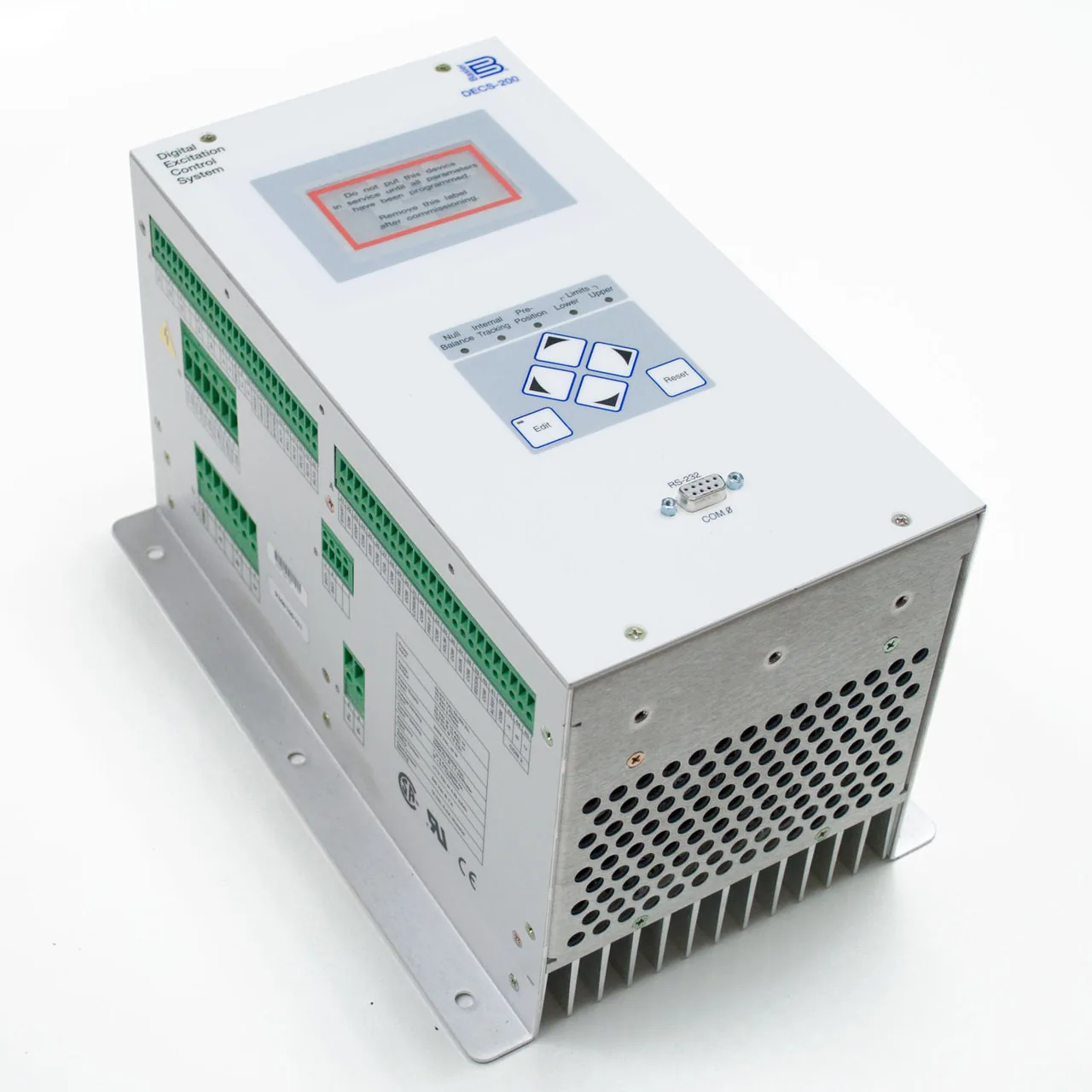

BASLER DECS200N-L1 Digital AVR - Digital Automatic Voltage Regulator for BASLER Alternators | OEM Replacement

Position in the range. The DECS200N-L1 sits in the BASLER regulator family carrying the designation Digital Automatic Voltage Regulator. Its place is defined by the field current it can hold, 15 Adc continuous, against the field resistance it can drive, Matched to the 32 / 63 / 125, at 0.25 per cent accuracy over -40 to +60 degC. Where a machine falls outside either of the first two figures, a different member of the same family is the correct answer rather than a workaround.

Excitation architecture. Self-excited or PMG, single-phase or three-phase power input. That single sentence decides most of the regulator's behaviour in a fault: whether the field survives a close-up short circuit, whether the machine builds up from residual voltage on its own, and how much the terminal voltage dips when a large motor starts on the same bus. The measurement that settles most arguments is the field current at full load, taken with a clamp meter, compared against the rating on the board.

Sensing. True RMS, single-phase or three-phase: 100 V/50 Hz (85-127 V), 120 V/60 Hz (94-153 V), 200 V/50 Hz (170-254 V), 240 V/60 Hz (187-305 V), 400 V/50 Hz (340-508 V), 480 V/60 Hz (374-600 V), 500 V/50 Hz (425-625 V), 600 V/60 Hz (510-660 V). The sensing circuit is the regulator's only view of the outside world, so its wiring matters as much as its specification. A voltage error introduced by a loose terminal or a long run of untwisted cable is indistinguishable, from the regulator's point of view, from a genuine voltage error on the alternator. Terminal boxes are hot, dirty and vibrating. Anything mounted inside one should be judged on how it behaves in year eight, not on how it reads on the bench.

Power stage and field drive. Power input Single-phase or three-phase, 50-500 Hz: 56-70 Vac +/-10 per cent at 780 VA, 100-139 Vac +/-10 per cent at 1570 VA, 190-277 Vac +/-10 per cent at 3070 VA, output 32 Vdc / 63 Vdc / 125 Vdc at 15 Adc, one model covers all three levels. Field current rating 15 Adc continuous, forcing capability Current-limited forcing into the exciter field, field resistance window Matched to the 32 / 63 / 125. These are not independent numbers: the output voltage ceiling and the field resistance together set the maximum current the board can actually deliver, and the continuous rating is only reachable at the low end of the resistance window. An alternator that has been rewound needs its field resistance re-measured, because a rewind commonly moves it by ten to twenty per cent in either direction.

Accuracy and response. 0.25 per cent steady-state accuracy, One cycle, with 20 standard stability settings plus one user-defined, thermal drift Negligible, all settings held digitally. In practice the accuracy figure is the least interesting of the three. What an operator notices is recovery after a load step, which is governed by response and by available forcing current, and what a maintenance engineer notices after two years is drift, which is governed by the reference circuit and the ambient temperature inside the terminal box. The cheapest diagnostic tool in excitation work is a DC ammeter in the field circuit. It turns a vague symptom into a number within seconds.

Frequency behaviour. Rated for 50-500 Hz, with Volts-per-hertz limiter with adjustable knee. The frequency-sensitive function exists to protect the prime mover, not the alternator: as engine speed falls the regulator reduces excitation so the alternator stops demanding torque the engine cannot supply. Without it, an overloaded engine is dragged down until it stalls, and the alternator is blamed for a fault that belongs to the fuel or governor system. The most common cause of intermittent excitation loss is a crimp terminal that was never properly made. Wiggle the harness with the machine running before replacing anything.

Paralleling. Reactive droop compensation, voltage matching, auto-tracking between control modes. On a single set this circuit does nothing. On two or more sets it is the only thing that stops the machines from exchanging reactive power in a slow oscillation, and it is the first place to look when a parallel installation shows a circulating current that nobody can explain. Vibration kills more regulators than heat does. If a board has failed twice in the same machine, look at the mounting before looking at the supplier.

Protection built into the regulator. Over-excitation limit, under-excitation limit, minimum excitation limiter, seven generator protections, exciter diode monitoring, sequence of events recorder. These functions protect the alternator and the regulator, not the installation. Downstream protection, loss of mains and reverse power all belong to the controller, and a site that relies on the AVR for them is a site that will eventually trip in a way nobody can explain. Any AVR that has been in service for more than ten years is running on borrowed time, and the failure always happens at the least convenient moment.

What it fits. Basler, Stamford, Leroy Somer, Marathon, Marelli and Mecc Alte alternators. Lifecycle status: Discontinued by Basler, DECS-250 is the successor. Both halves of that sentence matter at order time. A board that fits perfectly but has been discontinued is a different commercial decision from one that fits and is in current production, and the price difference rarely reflects the difference in risk. Never flash a field through the regulator. Disconnect the board, flash the field directly, then reconnect. Flashing through the AVR is how a working board becomes a failed board.

Field notes on this model. The DECS-200 is a four-mode digital regulator: automatic voltage, manual field current, power factor and reactive power. Two features matter when it is compared with an analogue AVC. The first is the 0.25 per cent regulation accuracy, roughly four times tighter than a typical analogue AVR. The second is the built-in exciter diode monitor, which flags a failing rotating rectifier before it takes the machine off line. Basler has discontinued the DECS-200 and the DECS-250 is the successor; stock offered here is new old stock or OEM-equivalent, and it drops into an existing DECS-200 installation without rewiring.

Where this regulator does not belong. A DECS200N-L1 is a voltage regulator, not a protection relay and not a governor interface. If the site needs loss-of-mains detection, reverse power protection or synchronising, those functions live in the controller, not here. Expecting the AVR to carry them is how installations end up with a set that holds voltage beautifully and still trips the site on a mains failure.

Mounting orientation and cooling. Most AVR boards are convection cooled and assume the heatsink fins are vertical. Mounting a DECS200N-L1 flat on its back inside a sealed box shortens its life even though the ambient temperature reads acceptable, because the local air around the thyristor is far hotter than the box average.

Under-frequency check. Run the set at reduced speed and confirm the volts-per-hertz knee actually operates. This test is skipped on most commissioning sheets and it is the one that saves an engine on a real overload, because the knee is what stops the alternator from loading a lugging engine into a stall.

Series resistance is not a fix. Adding a resistor in series with the field to bring it inside a regulator window costs forcing current exactly when the machine needs it most. If the field resistance is outside the window, change the board, not the circuit.

Voltage low under load only. This is the classic field current limit symptom. Measure the field current at full load and compare it with the 15 Adc continuous figure for the DECS200N-L1. If the board is at its limit, either the board is too small for the alternator or the field resistance has risen. A rewind, a corroded terminal or a long cable run will all produce the same reading.

Delivery and packing. Regulators are static-sensitive assemblies and should arrive in a sealed bag with foam, not loose in a box with a heatsink. Inspect on arrival and photograph the packaging before opening if there is any sign of crush damage.

What the customer is actually buying. When a regulator is quoted as a replacement, the buyer is not purchasing a circuit board. They are purchasing the certainty that the set will hold voltage on the next load step. On the DECS200N-L1 that certainty comes from the combination of 15 Adc continuous continuous field current and the One cycle, with 20 standard stability settings plus one user-defined response, and it disappears the moment the field resistance drifts outside the window the board was set up for.

Fusing. Fit the fuse the manual specifies and nothing larger. A bigger fuse does not protect the regulator better, it protects it later. On a DECS200N-L1 the fuse is there to clear a field short before the thyristor is destroyed, and a 20 A fuse in place of an 8 A one turns a cheap board replacement into a rewind.
