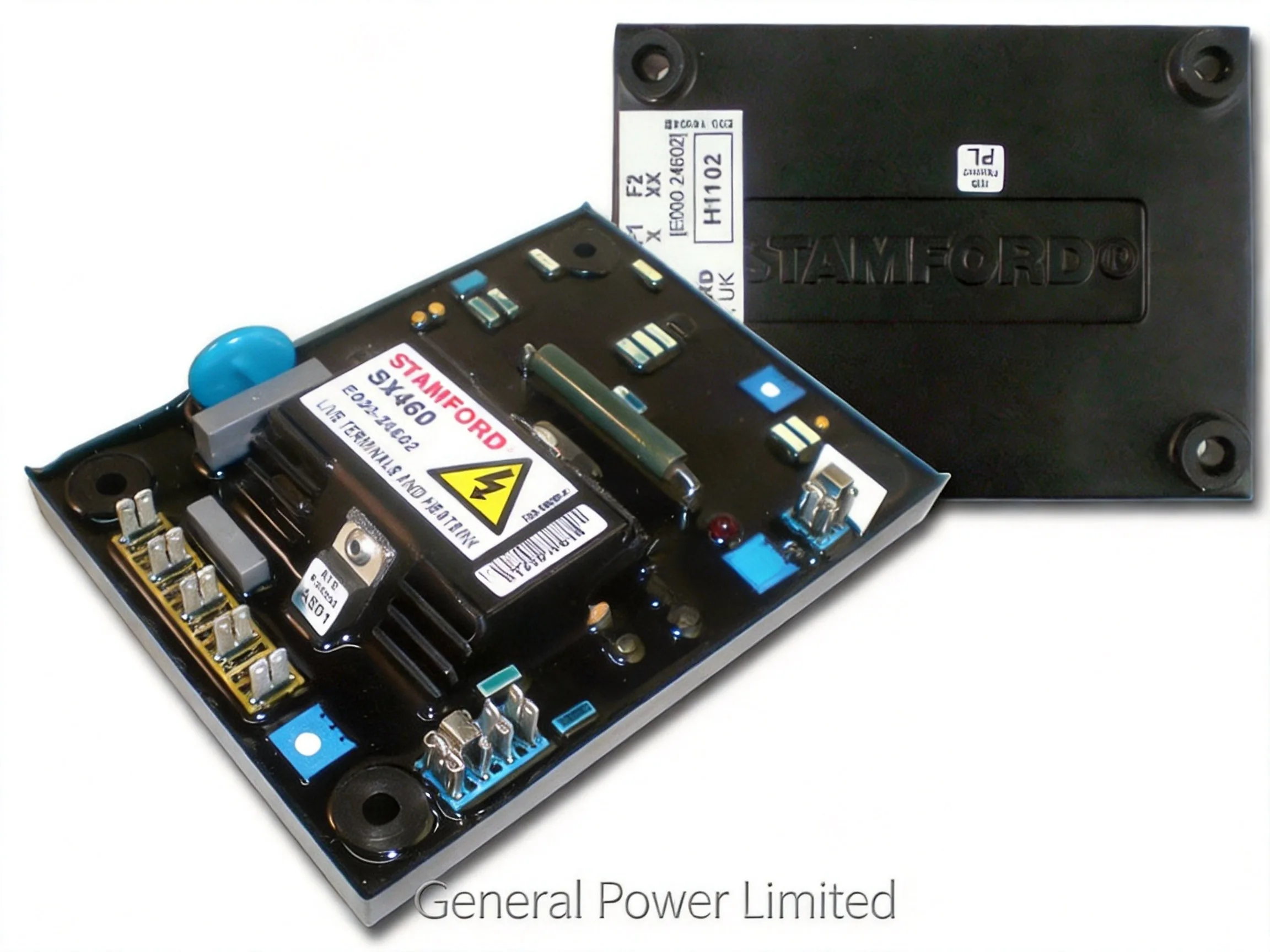

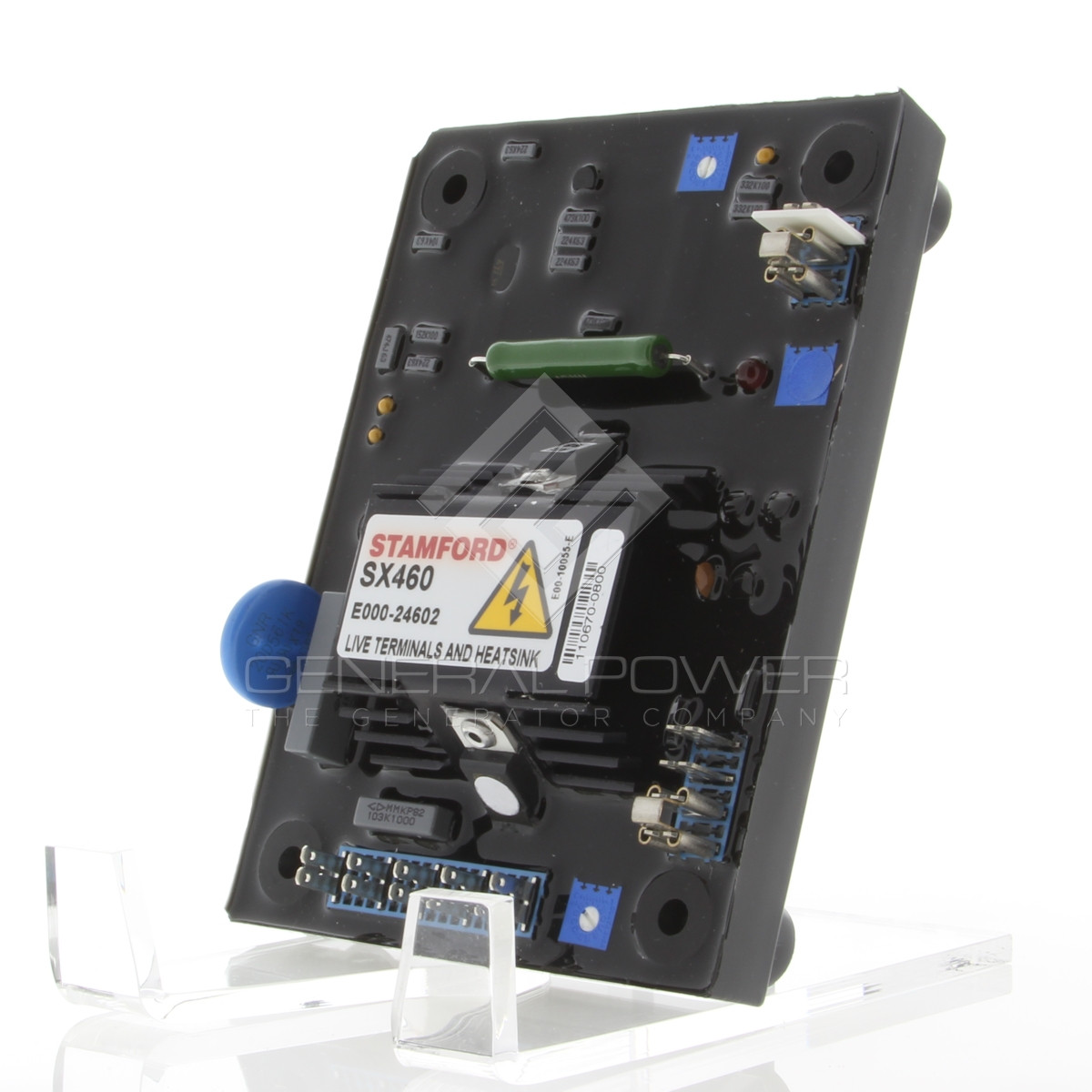

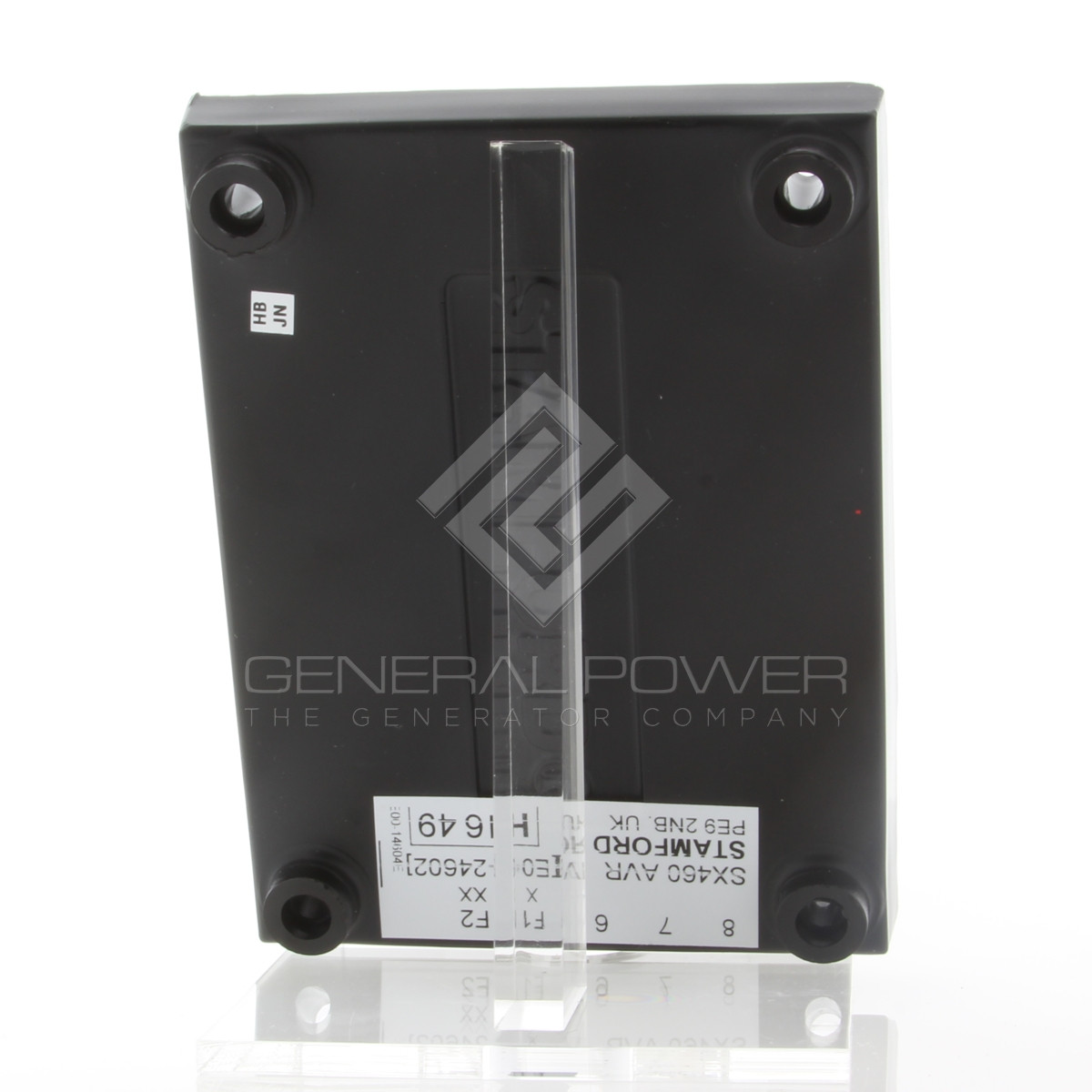

STAMFORD SX460 Analogue AVR - Analogue Automatic Voltage Regulator for STAMFORD Alternators | OEM Replacement

What the SX460 is. A Analogue Automatic Voltage Regulator built by STAMFORD for brushless excitation systems. On paper the specification is a list; in service it is a set of limits. The current the board will hold indefinitely is 4 A continuous; the field resistance window it will drive without exceeding its output voltage is 15 ohm; the tightest voltage band it can maintain is +/-1.0 per cent; and the ambient range in which all of that remains true is -40 to +70 degC.

Excitation architecture. Self-excited, shunt fed from the main stator. That single sentence decides most of the regulator's behaviour in a fault: whether the field survives a close-up short circuit, whether the machine builds up from residual voltage on its own, and how much the terminal voltage dips when a large motor starts on the same bus. A voltage that is correct at no load and low at full load is almost never an accuracy problem. It is a current limit, a resistance problem or a cable problem.

Sensing. 95-132 Vac or 190-264 Vac single-phase, selected by link. The sensing circuit is the regulator's only view of the outside world, so its wiring matters as much as its specification. A voltage error introduced by a loose terminal or a long run of untwisted cable is indistinguishable, from the regulator's point of view, from a genuine voltage error on the alternator. Take a photograph of the terminal block before removing anything. Wiring drawings for older machines are frequently wrong, and the photograph is the only reliable record.

Power stage and field drive. Power input 95-264 Vac single-phase, 50 / 60 Hz, output Maximum 90 Vdc at 207 Vac input. Field current rating 4 A continuous, forcing capability 6 A for 10 s, field resistance window 15 ohm. These are not independent numbers: the output voltage ceiling and the field resistance together set the maximum current the board can actually deliver, and the continuous rating is only reachable at the low end of the resistance window. Conformal coating is the difference between a board that survives a coastal site and one that corrodes quietly in eighteen months.

Accuracy and response. +/-1.0 per cent steady-state accuracy, AVR response 20 ms, field current to 90 per cent in 80 ms, terminal voltage to 97 per cent in 300 ms, thermal drift 0.05 per cent per degC. In practice the accuracy figure is the least interesting of the three. What an operator notices is recovery after a load step, which is governed by response and by available forcing current, and what a maintenance engineer notices after two years is drift, which is governed by the reference circuit and the ambient temperature inside the terminal box. If two identical sets behave differently on the same load, swap the regulators before swapping anything else. The result tells you which side of the machine the fault is on.

Frequency behaviour. Rated for 50 / 60 Hz, with Under-frequency knee at 95 per cent of nominal Hz. The frequency-sensitive function exists to protect the prime mover, not the alternator: as engine speed falls the regulator reduces excitation so the alternator stops demanding torque the engine cannot supply. Without it, an overloaded engine is dragged down until it stalls, and the alternator is blamed for a fault that belongs to the fuel or governor system. If two identical sets behave differently on the same load, swap the regulators before swapping anything else. The result tells you which side of the machine the fault is on.

Paralleling. Reactive droop via CT. On a single set this circuit does nothing. On two or more sets it is the only thing that stops the machines from exchanging reactive power in a slow oscillation, and it is the first place to look when a parallel installation shows a circulating current that nobody can explain. On a machine that has been standing for months, check residual voltage before condemning anything: a winding that has lost its remanence will not build up on any regulator.

Protection built into the regulator. Over-excitation shutdown, integral fuse, loss of sensing. These functions protect the alternator and the regulator, not the installation. Downstream protection, loss of mains and reverse power all belong to the controller, and a site that relies on the AVR for them is a site that will eventually trip in a way nobody can explain. The most common cause of intermittent excitation loss is a crimp terminal that was never properly made. Wiggle the harness with the machine running before replacing anything.

What it fits. Stamford UC, UCI, UCM and most brushless alternators up to about 500 kVA. Lifecycle status: Discontinued by Stamford, the AS440 is the replacement. Both halves of that sentence matter at order time. A board that fits perfectly but has been discontinued is a different commercial decision from one that fits and is in current production, and the price difference rarely reflects the difference in risk. Static accuracy is measured on a resistive load at constant frequency. Real loads and real governors are neither, so treat the figure as a comparison between boards rather than a promise.

Field notes on this model. The SX460 is the most copied AVR in the world, and that is also its biggest problem: counterfeit boards are everywhere. A genuine SX460 has a conformally coated board, a 15 ohm minimum field resistance and a 4 A continuous output. A copy usually gives 3 A or less and will sag on a cold load step. Stamford has discontinued the SX460, so new stock is either genuine old stock or a properly specified replacement such as the AS440.

Matching the board to the duty, not to the label. Two STAMFORD alternators of the same kVA can need different regulators if one is specified for motor starting and the other for a resistive load. The SX460 is specified at +/-1.0 per cent RMS regulation accuracy, which is the number that matters when the load is a mix of drives and lighting. For a purely resistive load even a looser board is invisible to the customer, and paying for accuracy that nobody measures is the most common way money is wasted on a rebuild.

Documentation that survives the job. Photograph the terminal block before disconnecting anything, and write the sensing tap and the field resistance on the inside of the terminal box lid. Ten years later that note is the only thing that will let the next engineer choose a replacement without a full survey.

Load step test. Apply and remove at least half rated load and watch the recovery. A healthy regulator pulls the voltage back inside one per cent within a few cycles. If the recovery is slow but the final voltage is correct, the problem is response, not accuracy, and on an analogue board that usually means the field circuit is seeing more resistance than it was set up for.

Why resistance matters more than current rating. A regulator delivers a voltage, and the field decides how much current that voltage produces. A board rated at 4 A continuous into a low resistance field will deliver far less into a high resistance one, because the output voltage is the limit. This is why an AVR that is electrically perfect on paper can fail to excite a particular alternator, and why the resistance figure belongs in the quotation rather than in the manual.

Voltage drifts with ambient temperature. If the voltage is correct cold and low hot, the thermal drift of the regulator and the temperature coefficient of the field are adding up in the same direction. The SX460 is specified at +/-1.0 per cent RMS; a drift of a couple of per cent over a fifty degree swing is normal for an analogue board and is not a fault.

Delivery and packing. Regulators are static-sensitive assemblies and should arrive in a sealed bag with foam, not loose in a box with a heatsink. Inspect on arrival and photograph the packaging before opening if there is any sign of crush damage.

Where this regulator does not belong. A SX460 is a voltage regulator, not a protection relay and not a governor interface. If the site needs loss-of-mains detection, reverse power protection or synchronising, those functions live in the controller, not here. Expecting the AVR to carry them is how installations end up with a set that holds voltage beautifully and still trips the site on a mains failure.

Power and sensing are not the same circuit. The power input on a SX460 can come from a different winding from the sensing input, and on PMG machines it always does. Wire them as two separate circuits, fused separately, and label both. The single most expensive mistake on a PMG set is landing the sensing leads on the PMG supply, which gives the regulator a voltage reference that rises with speed and produces a set whose voltage tracks engine rpm.
