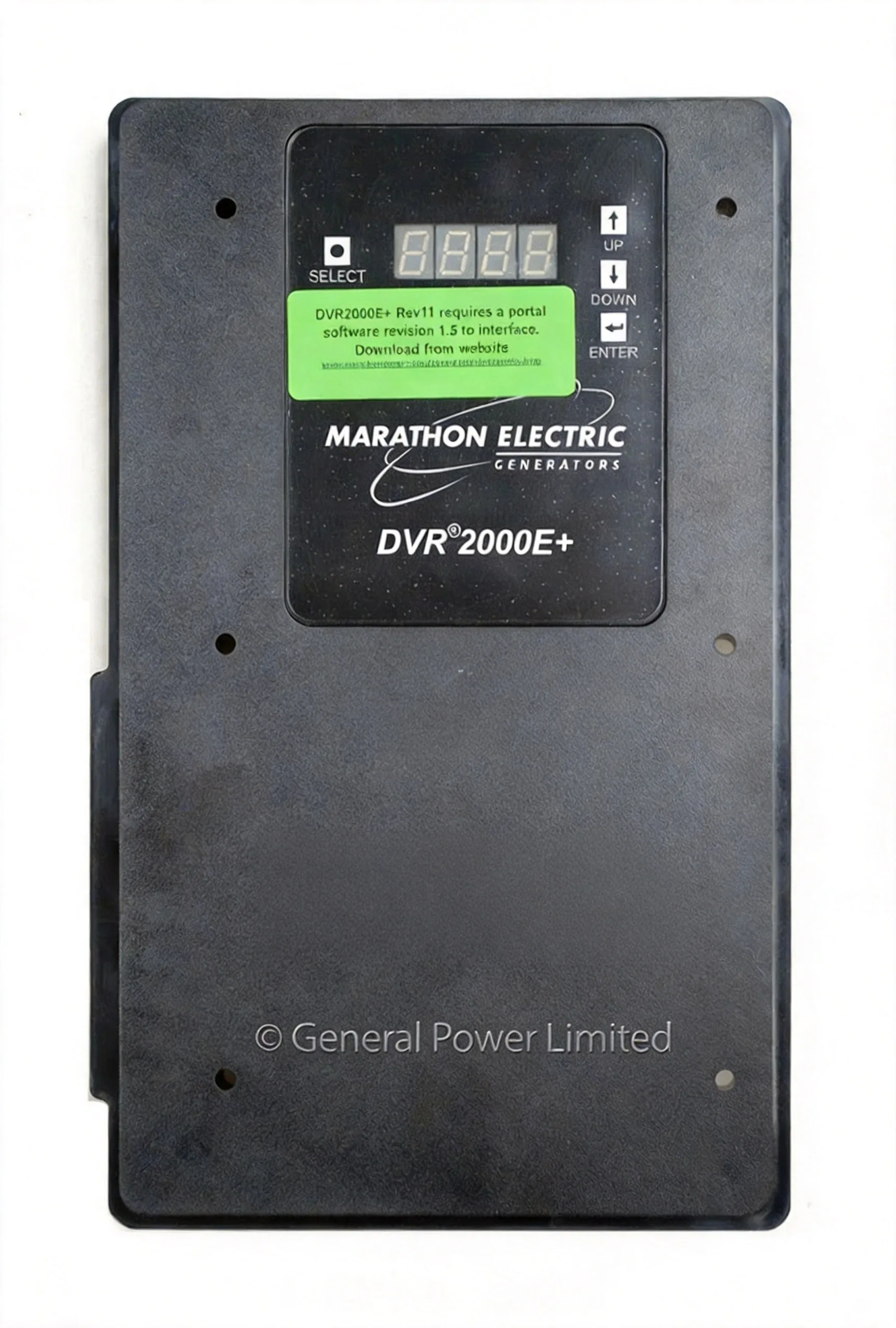

MARATHON DVR2000E+ Digital AVR - Digital Automatic Voltage Regulator for MARATHON Alternators | OEM Replacement

What the DVR2000E+ is. A Digital Automatic Voltage Regulator built by MARATHON for brushless excitation systems. On paper the specification is a list; in service it is a set of limits. The current the board will hold indefinitely is 4-6 A class; the field resistance window it will drive without exceeding its output voltage is Matched to the exciter field; the tightest voltage band it can maintain is +/-0.25 per cent; and the ambient range in which all of that remains true is -40 to +60 degC.

Excitation architecture. PMG fed. That single sentence decides most of the regulator's behaviour in a fault: whether the field survives a close-up short circuit, whether the machine builds up from residual voltage on its own, and how much the terminal voltage dips when a large motor starts on the same bus. Take a photograph of the terminal block before removing anything. Wiring drawings for older machines are frequently wrong, and the photograph is the only reliable record.

Sensing. Single-phase or three-phase, 100-600 Vac. The sensing circuit is the regulator's only view of the outside world, so its wiring matters as much as its specification. A voltage error introduced by a loose terminal or a long run of untwisted cable is indistinguishable, from the regulator's point of view, from a genuine voltage error on the alternator. The cheapest diagnostic tool in excitation work is a DC ammeter in the field circuit. It turns a vague symptom into a number within seconds.

Power stage and field drive. Power input PMG, 50 / 60 Hz, output 63 Vdc class. Field current rating 4-6 A class, forcing capability Short-term forcing current available for load steps, field resistance window Matched to the exciter field. These are not independent numbers: the output voltage ceiling and the field resistance together set the maximum current the board can actually deliver, and the continuous rating is only reachable at the low end of the resistance window. The most common cause of intermittent excitation loss is a crimp terminal that was never properly made. Wiggle the harness with the machine running before replacing anything.

Accuracy and response. +/-0.25 per cent steady-state accuracy, Digital, preset stability, thermal drift Low thermal drift. In practice the accuracy figure is the least interesting of the three. What an operator notices is recovery after a load step, which is governed by response and by available forcing current, and what a maintenance engineer notices after two years is drift, which is governed by the reference circuit and the ambient temperature inside the terminal box. Terminal boxes are hot, dirty and vibrating. Anything mounted inside one should be judged on how it behaves in year eight, not on how it reads on the bench.

Frequency behaviour. Rated for 50 / 60 Hz, with Volts-per-hertz knee with adjustable slope. The frequency-sensitive function exists to protect the prime mover, not the alternator: as engine speed falls the regulator reduces excitation so the alternator stops demanding torque the engine cannot supply. Without it, an overloaded engine is dragged down until it stalls, and the alternator is blamed for a fault that belongs to the fuel or governor system. Take a photograph of the terminal block before removing anything. Wiring drawings for older machines are frequently wrong, and the photograph is the only reliable record.

Paralleling. Reactive droop for paralleling. On a single set this circuit does nothing. On two or more sets it is the only thing that stops the machines from exchanging reactive power in a slow oscillation, and it is the first place to look when a parallel installation shows a circulating current that nobody can explain. A voltage that is correct at no load and low at full load is almost never an accuracy problem. It is a current limit, a resistance problem or a cable problem.

Protection built into the regulator. Over-excitation, loss of sensing, crowbar. These functions protect the alternator and the regulator, not the installation. Downstream protection, loss of mains and reverse power all belong to the controller, and a site that relies on the AVR for them is a site that will eventually trip in a way nobody can explain. Field resistance is a temperature-dependent number. A reading taken on a cold morning and a reading taken after an hour at load are both correct and both different.

What it fits. Marathon MagnaPlus and MagnaMax alternators. Lifecycle status: Legacy, superseded by DVR2400 on new build. Both halves of that sentence matter at order time. A board that fits perfectly but has been discontinued is a different commercial decision from one that fits and is in current production, and the price difference rarely reflects the difference in risk. Conformal coating is the difference between a board that survives a coastal site and one that corrodes quietly in eighteen months.

Field notes on this model. The DVR2000E is the earlier Marathon digital regulator, and the E, EC and E-plus suffixes denote progressive revisions of the same board. They are not interchangeable without checking the sensing link settings, but they share the same 0.25 per cent accuracy class and the same PC setup tool.

Parallel operation is a different animal. A single set on an island load only has to hold voltage. Two sets in parallel also have to agree about reactive load, and that agreement is made or broken by the droop circuit, not by the voltage accuracy. If a site is going to parallel, the regulator choice has to be made with the droop method in mind from the beginning, because retrofitting load sharing onto a board that was never specified for it costs more than buying the right one.

Wiring practice that prevents most call-backs. Run the sensing leads as a twisted pair, separate from the field cables, and land them on the terminals the drawing names rather than on the ones that happen to be nearest. On a DVR2000E+ the sensing input draws very little current, which is exactly why it is vulnerable: a loose terminal adds resistance that the regulator reads as a voltage error and corrects by pushing the field up, so the machine runs hot and high for no visible reason.

When the trim runs out of range. If full rotation of the voltage trim still will not bring the machine to rated voltage, the sensing tap is wrong. Moving one tap changes the reference by a factor of about two, so the correct tap is the one that puts rated voltage near the middle of the trim range rather than at either end.

Why resistance matters more than current rating. A regulator delivers a voltage, and the field decides how much current that voltage produces. A board rated at 4-6 A class into a low resistance field will deliver far less into a high resistance one, because the output voltage is the limit. This is why an AVR that is electrically perfect on paper can fail to excite a particular alternator, and why the resistance figure belongs in the quotation rather than in the manual.

Voltage drifts with ambient temperature. If the voltage is correct cold and low hot, the thermal drift of the regulator and the temperature coefficient of the field are adding up in the same direction. The DVR2000E+ is specified at +/-0.25 per cent; a drift of a couple of per cent over a fifty degree swing is normal for an analogue board and is not a fault.

Before the order is placed. Confirm the alternator frame, the measured field resistance, the sensing voltage at rated speed, the excitation system (shunt, AREP, auxiliary winding or PMG) and the mounting footprint. Five answers, no guessing. Every wrong regulator order we see traces back to one of those five being assumed rather than measured.

Where this regulator does not belong. A DVR2000E+ is a voltage regulator, not a protection relay and not a governor interface. If the site needs loss-of-mains detection, reverse power protection or synchronising, those functions live in the controller, not here. Expecting the AVR to carry them is how installations end up with a set that holds voltage beautifully and still trips the site on a mains failure.

Documentation that survives the job. Photograph the terminal block before disconnecting anything, and write the sensing tap and the field resistance on the inside of the terminal box lid. Ten years later that note is the only thing that will let the next engineer choose a replacement without a full survey.
