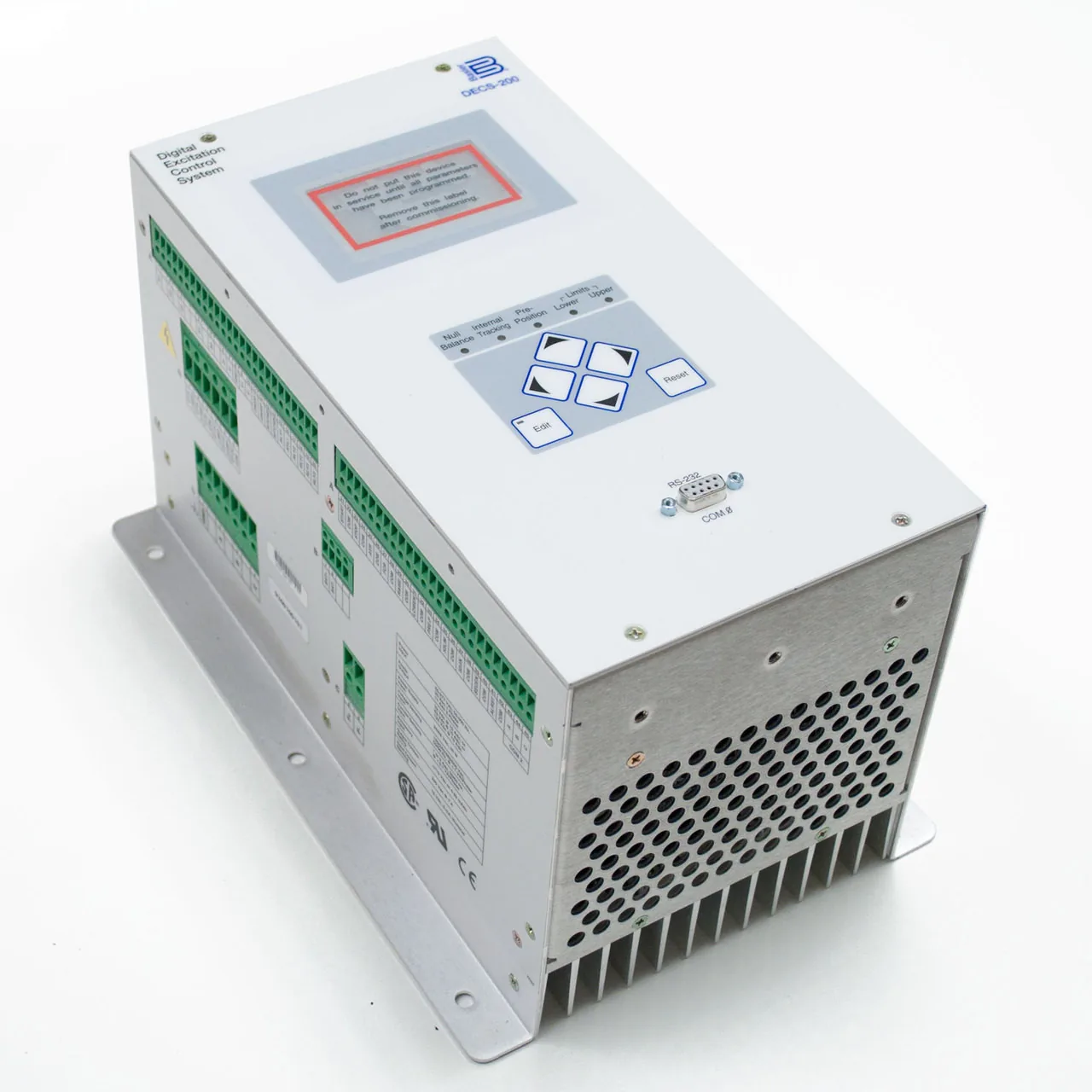

BASLER DECS200N-C1 Digital AVR - Digital Automatic Voltage Regulator for BASLER Alternators | OEM Replacement

Position in the range. The DECS200N-C1 sits in the BASLER regulator family carrying the designation Digital Automatic Voltage Regulator. Its place is defined by the field current it can hold, 15 Adc continuous, against the field resistance it can drive, Matched to the 32 / 63 / 125, at 0.25 per cent accuracy over -40 to +60 degC. Where a machine falls outside either of the first two figures, a different member of the same family is the correct answer rather than a workaround.

Excitation architecture. Self-excited or PMG, single-phase or three-phase power input. That single sentence decides most of the regulator's behaviour in a fault: whether the field survives a close-up short circuit, whether the machine builds up from residual voltage on its own, and how much the terminal voltage dips when a large motor starts on the same bus. An alternator that has been rewound needs its field resistance re-measured, because a rewind commonly moves it by ten to twenty per cent in either direction.

Sensing. True RMS, single-phase or three-phase: 100 V/50 Hz (85-127 V), 120 V/60 Hz (94-153 V), 200 V/50 Hz (170-254 V), 240 V/60 Hz (187-305 V), 400 V/50 Hz (340-508 V), 480 V/60 Hz (374-600 V), 500 V/50 Hz (425-625 V), 600 V/60 Hz (510-660 V). The sensing circuit is the regulator's only view of the outside world, so its wiring matters as much as its specification. A voltage error introduced by a loose terminal or a long run of untwisted cable is indistinguishable, from the regulator's point of view, from a genuine voltage error on the alternator. Where a board has been superseded, the replacement usually fits the same footprint but not the same terminal numbering. Read the drawing, do not read the old wiring.

Power stage and field drive. Power input Single-phase or three-phase, 50-500 Hz: 56-70 Vac +/-10 per cent at 780 VA, 100-139 Vac +/-10 per cent at 1570 VA, 190-277 Vac +/-10 per cent at 3070 VA, output 32 Vdc / 63 Vdc / 125 Vdc at 15 Adc, one model covers all three levels. Field current rating 15 Adc continuous, forcing capability Current-limited forcing into the exciter field, field resistance window Matched to the 32 / 63 / 125. These are not independent numbers: the output voltage ceiling and the field resistance together set the maximum current the board can actually deliver, and the continuous rating is only reachable at the low end of the resistance window. Conformal coating is the difference between a board that survives a coastal site and one that corrodes quietly in eighteen months.

Accuracy and response. 0.25 per cent steady-state accuracy, One cycle, with 20 standard stability settings plus one user-defined, thermal drift Negligible, all settings held digitally. In practice the accuracy figure is the least interesting of the three. What an operator notices is recovery after a load step, which is governed by response and by available forcing current, and what a maintenance engineer notices after two years is drift, which is governed by the reference circuit and the ambient temperature inside the terminal box. Conformal coating is the difference between a board that survives a coastal site and one that corrodes quietly in eighteen months.

Frequency behaviour. Rated for 50-500 Hz, with Volts-per-hertz limiter with adjustable knee. The frequency-sensitive function exists to protect the prime mover, not the alternator: as engine speed falls the regulator reduces excitation so the alternator stops demanding torque the engine cannot supply. Without it, an overloaded engine is dragged down until it stalls, and the alternator is blamed for a fault that belongs to the fuel or governor system. If the machine will not hold voltage at all, disconnect the field and measure the sensing voltage first. That one reading separates a sensing fault from a field fault.

Paralleling. Reactive droop compensation, voltage matching, auto-tracking between control modes. On a single set this circuit does nothing. On two or more sets it is the only thing that stops the machines from exchanging reactive power in a slow oscillation, and it is the first place to look when a parallel installation shows a circulating current that nobody can explain. Conformal coating is the difference between a board that survives a coastal site and one that corrodes quietly in eighteen months.

Protection built into the regulator. Over-excitation limit, under-excitation limit, minimum excitation limiter, seven generator protections, exciter diode monitoring, sequence of events recorder. These functions protect the alternator and the regulator, not the installation. Downstream protection, loss of mains and reverse power all belong to the controller, and a site that relies on the AVR for them is a site that will eventually trip in a way nobody can explain. The most common cause of intermittent excitation loss is a crimp terminal that was never properly made. Wiggle the harness with the machine running before replacing anything.

What it fits. Basler, Stamford, Leroy Somer, Marathon, Marelli and Mecc Alte alternators. Lifecycle status: Discontinued by Basler, DECS-250 is the successor. Both halves of that sentence matter at order time. A board that fits perfectly but has been discontinued is a different commercial decision from one that fits and is in current production, and the price difference rarely reflects the difference in risk. Load sharing between parallel sets is set up with an instrument, not by ear. A droop adjustment made by listening to the sets will be wrong at every load other than the one it was set at.

Field notes on this model. The DECS-200 is a four-mode digital regulator: automatic voltage, manual field current, power factor and reactive power. Two features matter when it is compared with an analogue AVC. The first is the 0.25 per cent regulation accuracy, roughly four times tighter than a typical analogue AVR. The second is the built-in exciter diode monitor, which flags a failing rotating rectifier before it takes the machine off line. Basler has discontinued the DECS-200 and the DECS-250 is the successor; stock offered here is new old stock or OEM-equivalent, and it drops into an existing DECS-200 installation without rewiring.

Where this board earns its place. The DECS200N-C1 is normally the answer when a BASLER machine has lost regulation and the original board is either unavailable or priced like a small car. What decides the fit is not the brand name on the cover but three numbers: the field resistance window, the continuous field current, and the sensing voltage the machine actually delivers at the AVR terminals. Get those three right and the regulator behaves; get any one of them wrong and the symptom usually looks like a mechanical fault rather than an electrical one.

Documentation that survives the job. Photograph the terminal block before disconnecting anything, and write the sensing tap and the field resistance on the inside of the terminal box lid. Ten years later that note is the only thing that will let the next engineer choose a replacement without a full survey.

Stability before accuracy. Set the stability adjustment until the voltage stops hunting on a load step, then leave it alone. Chasing the last tenth of a per cent of static accuracy by tightening stability is how a set ends up oscillating at 2 Hz under a resistive load and looking like a governor fault. The DECS200N-C1 is specified at 0.25 per cent, the tightest figure in the Basler analogue-to-digital range; a real machine on a real load will not do better than that no matter how the trimmer is set.

The forcing margin. A regulator that can only just hold rated voltage at rated load has no forcing margin left, and the machine will dip on every load step. The DECS200N-C1 is specified with a minimum field resistance of Matched to the 32 / 63 / 125 Vdc output selected; staying comfortably above that minimum, rather than exactly at it, is what leaves the forcing margin that makes a set feel solid rather than merely adequate.

Voltage drifts with ambient temperature. If the voltage is correct cold and low hot, the thermal drift of the regulator and the temperature coefficient of the field are adding up in the same direction. The DECS200N-C1 is specified at 0.25 per cent, the tightest figure in the Basler analogue-to-digital range; a drift of a couple of per cent over a fifty degree swing is normal for an analogue board and is not a fault.

Lifecycle status. If the board being replaced is discontinued, price the current replacement at the same time as the old-stock option. On a machine that is going to run for another ten years the current production board is almost always the cheaper decision even when the old stock is available.

Where this board earns its place. The DECS200N-C1 is normally the answer when a BASLER machine has lost regulation and the original board is either unavailable or priced like a small car. What decides the fit is not the brand name on the cover but three numbers: the field resistance window, the continuous field current, and the sensing voltage the machine actually delivers at the AVR terminals. Get those three right and the regulator behaves; get any one of them wrong and the symptom usually looks like a mechanical fault rather than an electrical one.

Fusing. Fit the fuse the manual specifies and nothing larger. A bigger fuse does not protect the regulator better, it protects it later. On a DECS200N-C1 the fuse is there to clear a field short before the thyristor is destroyed, and a 20 A fuse in place of an 8 A one turns a cheap board replacement into a rewind.
