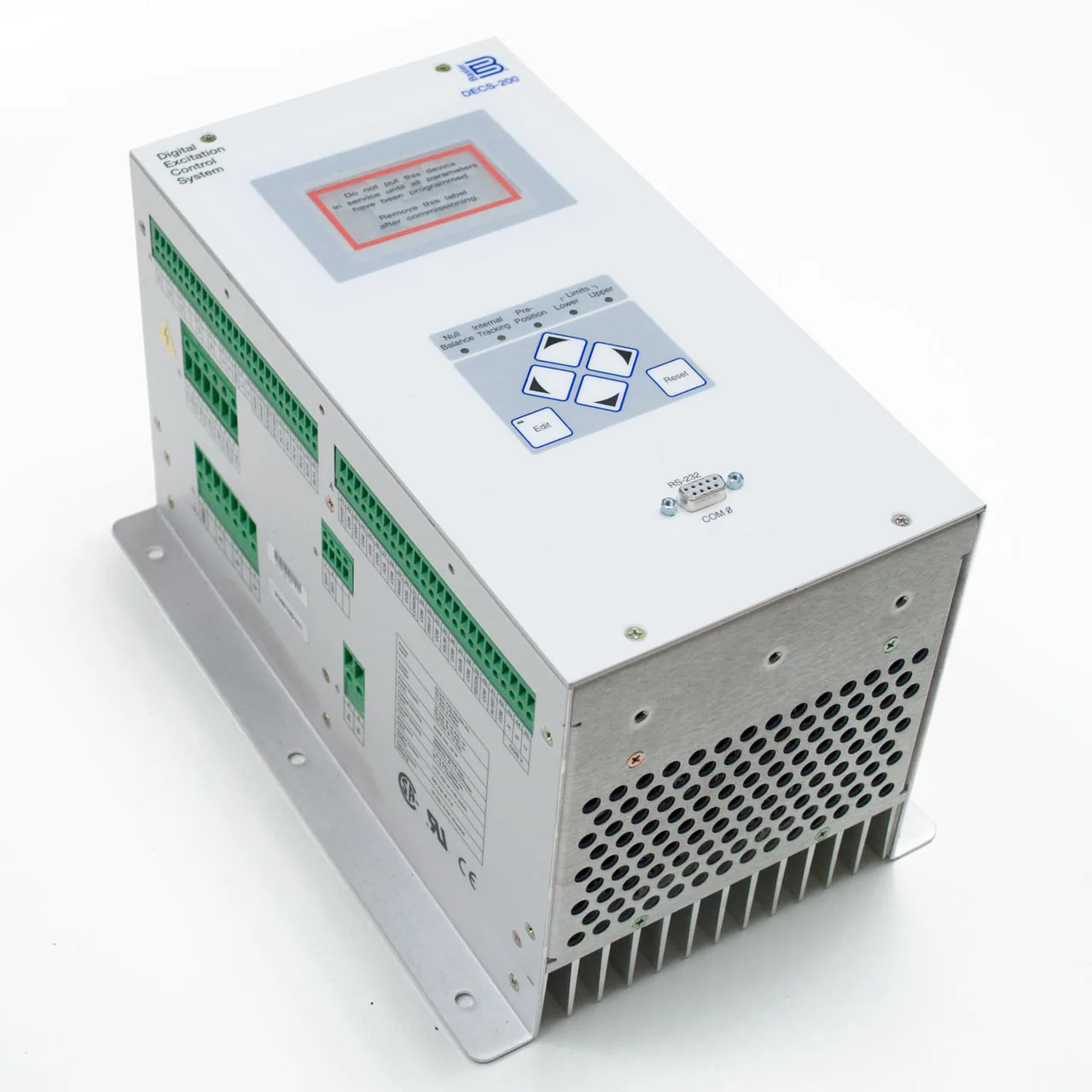

BASLER DECS200N-C3 Digital AVR - Digital Automatic Voltage Regulator for BASLER Alternators | OEM Replacement

Short version. The DECS200N-C3 is a Digital Automatic Voltage Regulator. It supplies the exciter field, senses the alternator output and corrects the difference several times a second. Its rating is 15 Adc continuous, its field resistance window Matched to the 32 / 63 / 125, its accuracy 0.25 per cent, and it is intended for machines whose field winding sits inside that window. Read the rest of this page as the detail behind those three figures.

Excitation architecture. Self-excited or PMG, single-phase or three-phase power input. That single sentence decides most of the regulator's behaviour in a fault: whether the field survives a close-up short circuit, whether the machine builds up from residual voltage on its own, and how much the terminal voltage dips when a large motor starts on the same bus. An alternator that has been rewound needs its field resistance re-measured, because a rewind commonly moves it by ten to twenty per cent in either direction.

Sensing. True RMS, single-phase or three-phase: 100 V/50 Hz (85-127 V), 120 V/60 Hz (94-153 V), 200 V/50 Hz (170-254 V), 240 V/60 Hz (187-305 V), 400 V/50 Hz (340-508 V), 480 V/60 Hz (374-600 V), 500 V/50 Hz (425-625 V), 600 V/60 Hz (510-660 V). The sensing circuit is the regulator's only view of the outside world, so its wiring matters as much as its specification. A voltage error introduced by a loose terminal or a long run of untwisted cable is indistinguishable, from the regulator's point of view, from a genuine voltage error on the alternator. Vibration kills more regulators than heat does. If a board has failed twice in the same machine, look at the mounting before looking at the supplier.

Power stage and field drive. Power input Single-phase or three-phase, 50-500 Hz: 56-70 Vac +/-10 per cent at 780 VA, 100-139 Vac +/-10 per cent at 1570 VA, 190-277 Vac +/-10 per cent at 3070 VA, output 32 Vdc / 63 Vdc / 125 Vdc at 15 Adc, one model covers all three levels. Field current rating 15 Adc continuous, forcing capability Current-limited forcing into the exciter field, field resistance window Matched to the 32 / 63 / 125. These are not independent numbers: the output voltage ceiling and the field resistance together set the maximum current the board can actually deliver, and the continuous rating is only reachable at the low end of the resistance window. Static accuracy is measured on a resistive load at constant frequency. Real loads and real governors are neither, so treat the figure as a comparison between boards rather than a promise.

Accuracy and response. 0.25 per cent steady-state accuracy, One cycle, with 20 standard stability settings plus one user-defined, thermal drift Negligible, all settings held digitally. In practice the accuracy figure is the least interesting of the three. What an operator notices is recovery after a load step, which is governed by response and by available forcing current, and what a maintenance engineer notices after two years is drift, which is governed by the reference circuit and the ambient temperature inside the terminal box. Vibration kills more regulators than heat does. If a board has failed twice in the same machine, look at the mounting before looking at the supplier.

Frequency behaviour. Rated for 50-500 Hz, with Volts-per-hertz limiter with adjustable knee. The frequency-sensitive function exists to protect the prime mover, not the alternator: as engine speed falls the regulator reduces excitation so the alternator stops demanding torque the engine cannot supply. Without it, an overloaded engine is dragged down until it stalls, and the alternator is blamed for a fault that belongs to the fuel or governor system. The cheapest diagnostic tool in excitation work is a DC ammeter in the field circuit. It turns a vague symptom into a number within seconds.

Paralleling. Reactive droop compensation, voltage matching, auto-tracking between control modes. On a single set this circuit does nothing. On two or more sets it is the only thing that stops the machines from exchanging reactive power in a slow oscillation, and it is the first place to look when a parallel installation shows a circulating current that nobody can explain. Conformal coating is the difference between a board that survives a coastal site and one that corrodes quietly in eighteen months.

Protection built into the regulator. Over-excitation limit, under-excitation limit, minimum excitation limiter, seven generator protections, exciter diode monitoring, sequence of events recorder. These functions protect the alternator and the regulator, not the installation. Downstream protection, loss of mains and reverse power all belong to the controller, and a site that relies on the AVR for them is a site that will eventually trip in a way nobody can explain. A set that runs at reduced speed will show low voltage on any regulator. Check engine speed against the nameplate before touching the excitation system.

What it fits. Basler, Stamford, Leroy Somer, Marathon, Marelli and Mecc Alte alternators. Lifecycle status: Discontinued by Basler, DECS-250 is the successor. Both halves of that sentence matter at order time. A board that fits perfectly but has been discontinued is a different commercial decision from one that fits and is in current production, and the price difference rarely reflects the difference in risk. Never flash a field through the regulator. Disconnect the board, flash the field directly, then reconnect. Flashing through the AVR is how a working board becomes a failed board.

Field notes on this model. The DECS-200 is a four-mode digital regulator: automatic voltage, manual field current, power factor and reactive power. Two features matter when it is compared with an analogue AVC. The first is the 0.25 per cent regulation accuracy, roughly four times tighter than a typical analogue AVR. The second is the built-in exciter diode monitor, which flags a failing rotating rectifier before it takes the machine off line. Basler has discontinued the DECS-200 and the DECS-250 is the successor; stock offered here is new old stock or OEM-equivalent, and it drops into an existing DECS-200 installation without rewiring.

Reading the application backwards. Most regulator problems arrive described as engine trouble. A set that hunts on load, or whose voltage sags for two seconds after a contactor closes, is usually reporting a field current limit rather than a fuel problem. On a DECS200N-C3 the first thing to check is whether the 15 Adc continuous figure is being reached on a cold morning, because field resistance rises with temperature in the opposite direction to copper and a board that is marginal at 20 degC can be comfortable at 50 degC or the other way round depending on the winding.

Mounting orientation and cooling. Most AVR boards are convection cooled and assume the heatsink fins are vertical. Mounting a DECS200N-C3 flat on its back inside a sealed box shortens its life even though the ambient temperature reads acceptable, because the local air around the thyristor is far hotter than the box average.

Bench test before installation. Where a spare board is available, test it on the bench with a variable AC supply into the power input and a resistor bank as the field load. A board that cannot hold a steady output into a resistor will not hold it into an exciter either, and finding that out on the bench costs nothing.

Rewind caution. After a field rewind the resistance often changes by ten to twenty per cent, which can push a marginal regulator out of range. Whenever a machine comes back from a rewind, re-check the regulator against the new field resistance before returning it to service.

Spares strategy. Keep one regulator of each family in stock rather than several of one. A failed AVR takes a set off line in seconds and the replacement lead time is measured in days, which is why the cost of the spare is trivial compared with the cost of the outage.

New, old stock or refurbished. Discontinued regulators are available as new old stock, which is genuine and works, and as refurbished, which is a gamble on how the board was stored. Ask which one is being quoted. A board that has spent ten years in a damp warehouse has aged electrolytics even though it has never been installed.

Standby versus prime power. A standby set runs a few hundred hours a year and its regulator spends most of its life cold; a prime power set runs continuously and its regulator spends its life at operating temperature. The DECS200N-C3 is rated for -40 to +60 degC, which is fine in both cases provided the terminal box has any ventilation at all. What changes between the two duties is the capacitor ageing inside the board, not the semiconductor, so a prime power machine should have the regulator inspected on a schedule rather than on failure.

Wiring practice that prevents most call-backs. Run the sensing leads as a twisted pair, separate from the field cables, and land them on the terminals the drawing names rather than on the ones that happen to be nearest. On a DECS200N-C3 the sensing input draws very little current, which is exactly why it is vulnerable: a loose terminal adds resistance that the regulator reads as a voltage error and corrects by pushing the field up, so the machine runs hot and high for no visible reason.
