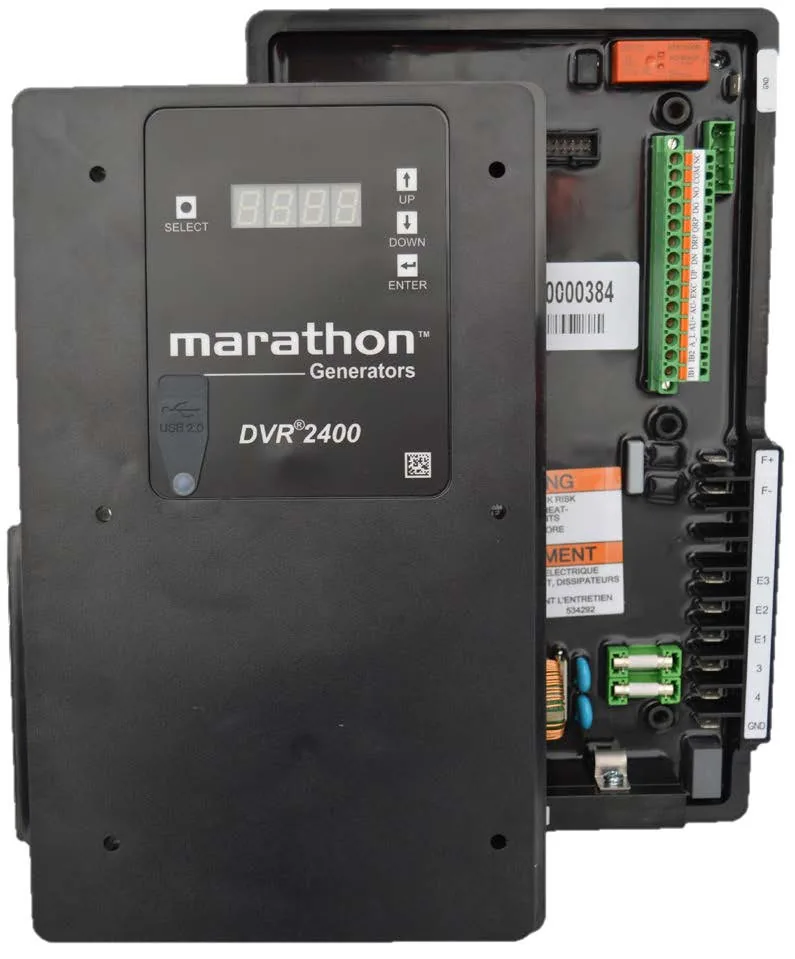

MARATHON DVR2400 Digital AVR - Digital Automatic Voltage Regulator for MARATHON Alternators | OEM Replacement

Position in the range. The DVR2400 sits in the MARATHON regulator family carrying the designation Digital Automatic Voltage Regulator. Its place is defined by the field current it can hold, Sized for the MagnaPower frame, against the field resistance it can drive, Matched to the exciter field, at +/-0.25 per cent accuracy over -40 to +60 degC. Where a machine falls outside either of the first two figures, a different member of the same family is the correct answer rather than a workaround.

Excitation architecture. PMG fed, with a crowbar circuit across the field. That single sentence decides most of the regulator's behaviour in a fault: whether the field survives a close-up short circuit, whether the machine builds up from residual voltage on its own, and how much the terminal voltage dips when a large motor starts on the same bus. The most common cause of intermittent excitation loss is a crimp terminal that was never properly made. Wiggle the harness with the machine running before replacing anything.

Sensing. Single-phase or three-phase, 100-600 Vac, 50 / 60 Hz, under 1 VA per phase on terminals E1 / E2 / E3. The sensing circuit is the regulator's only view of the outside world, so its wiring matters as much as its specification. A voltage error introduced by a loose terminal or a long run of untwisted cable is indistinguishable, from the regulator's point of view, from a genuine voltage error on the alternator. Never flash a field through the regulator. Disconnect the board, flash the field directly, then reconnect. Flashing through the AVR is how a working board becomes a failed board.

Power stage and field drive. Power input PMG, 50 / 60 Hz, output 63 Vdc class into the exciter field. Field current rating Sized for the MagnaPower frame, forcing capability Short-term forcing current available for load steps, field resistance window Matched to the exciter field. These are not independent numbers: the output voltage ceiling and the field resistance together set the maximum current the board can actually deliver, and the continuous rating is only reachable at the low end of the resistance window. Conformal coating is the difference between a board that survives a coastal site and one that corrodes quietly in eighteen months.

Accuracy and response. +/-0.25 per cent steady-state accuracy, Digital, with stability preset by frame size, thermal drift +/-0.0125 per cent per degC. In practice the accuracy figure is the least interesting of the three. What an operator notices is recovery after a load step, which is governed by response and by available forcing current, and what a maintenance engineer notices after two years is drift, which is governed by the reference circuit and the ambient temperature inside the terminal box. Counterfeit regulators are a real problem on the widely copied boards. Buy from a source that will state where the board was made.

Frequency behaviour. Rated for 50 / 60 Hz, with Volts-per-hertz knee adjustable from 40 to 70 Hz with a slope of 1.00 to 5.00 pu. The frequency-sensitive function exists to protect the prime mover, not the alternator: as engine speed falls the regulator reduces excitation so the alternator stops demanding torque the engine cannot supply. Without it, an overloaded engine is dragged down until it stalls, and the alternator is blamed for a fault that belongs to the fuel or governor system. The cheapest diagnostic tool in excitation work is a DC ammeter in the field circuit. It turns a vague symptom into a number within seconds.

Paralleling. Reactive droop plus reactive differential compensation. On a single set this circuit does nothing. On two or more sets it is the only thing that stops the machines from exchanging reactive power in a slow oscillation, and it is the first place to look when a parallel installation shows a circulating current that nobody can explain. The trim potentiometer is not a calibration device. If rated voltage is not reachable near the middle of its range, the sensing tap is wrong.

Protection built into the regulator. Field over-excitation shutdown, field under-excitation shutdown, generator over-voltage, under-voltage and voltage-unbalance shutdown, crowbar field protection, over-temperature. These functions protect the alternator and the regulator, not the installation. Downstream protection, loss of mains and reverse power all belong to the controller, and a site that relies on the AVR for them is a site that will eventually trip in a way nobody can explain. Vibration kills more regulators than heat does. If a board has failed twice in the same machine, look at the mounting before looking at the supplier.

What it fits. Marathon MagnaPower and MagnaMax alternators. Lifecycle status: In production. Both halves of that sentence matter at order time. A board that fits perfectly but has been discontinued is a different commercial decision from one that fits and is in current production, and the price difference rarely reflects the difference in risk. A regulator rated for a minimum field resistance of a few ohms will not drive a high resistance field to full current, however good its specification looks on paper.

Field notes on this model. The DVR2400 and DVR2500 are the digital regulators on the Marathon MagnaPower range, and the 0.25 per cent accuracy plus the 0.0125 per cent per degC drift figure are what separate them from an analogue AVR: between a cold morning and a hot afternoon the terminal voltage barely moves. The crowbar circuit is the other headline feature, because if the regulator loses control it short-circuits the field instead of letting the voltage run away. Setup and monitoring are done over USB with DVRPortal.

Where this board earns its place. The DVR2400 is normally the answer when a MARATHON machine has lost regulation and the original board is either unavailable or priced like a small car. What decides the fit is not the brand name on the cover but three numbers: the field resistance window, the continuous field current, and the sensing voltage the machine actually delivers at the AVR terminals. Get those three right and the regulator behaves; get any one of them wrong and the symptom usually looks like a mechanical fault rather than an electrical one.

Documentation that survives the job. Photograph the terminal block before disconnecting anything, and write the sensing tap and the field resistance on the inside of the terminal box lid. Ten years later that note is the only thing that will let the next engineer choose a replacement without a full survey.

Paralleling setup. With two sets on the bus, adjust droop until reactive load divides in proportion to machine rating, then check it again at half load. A droop setting that looks right at full load and wrong at half load is usually a CT ratio error rather than a regulator fault.

Temperature drift of the field. Copper rises about 0.4 per cent in resistance per degC, so a field that measures 12 ohm cold will measure around 15 ohm at a 70 degC winding temperature. A regulator set up on a cold machine and never re-checked will therefore be running at a different operating point every time the season changes, and the symptom is a voltage that is correct in winter and low in summer.

Do not overlook the obvious. Before condemning a regulator, confirm the engine is actually at rated speed. A set running five per cent slow will show low voltage on any board, and replacing the AVR will not fix a governor.

New, old stock or refurbished. Discontinued regulators are available as new old stock, which is genuine and works, and as refurbished, which is a gamble on how the board was stored. Ask which one is being quoted. A board that has spent ten years in a damp warehouse has aged electrolytics even though it has never been installed.

What the customer is actually buying. When a regulator is quoted as a replacement, the buyer is not purchasing a circuit board. They are purchasing the certainty that the set will hold voltage on the next load step. On the DVR2400 that certainty comes from the combination of Sized for the MagnaPower frame; DVR2400 senses single-phase current and DVR2500 senses three-phase current at 5 Aac continuous field current and the Digital, with stability preset by frame size response, and it disappears the moment the field resistance drifts outside the window the board was set up for.

Fusing. Fit the fuse the manual specifies and nothing larger. A bigger fuse does not protect the regulator better, it protects it later. On a DVR2400 the fuse is there to clear a field short before the thyristor is destroyed, and a 20 A fuse in place of an 8 A one turns a cheap board replacement into a rewind.
